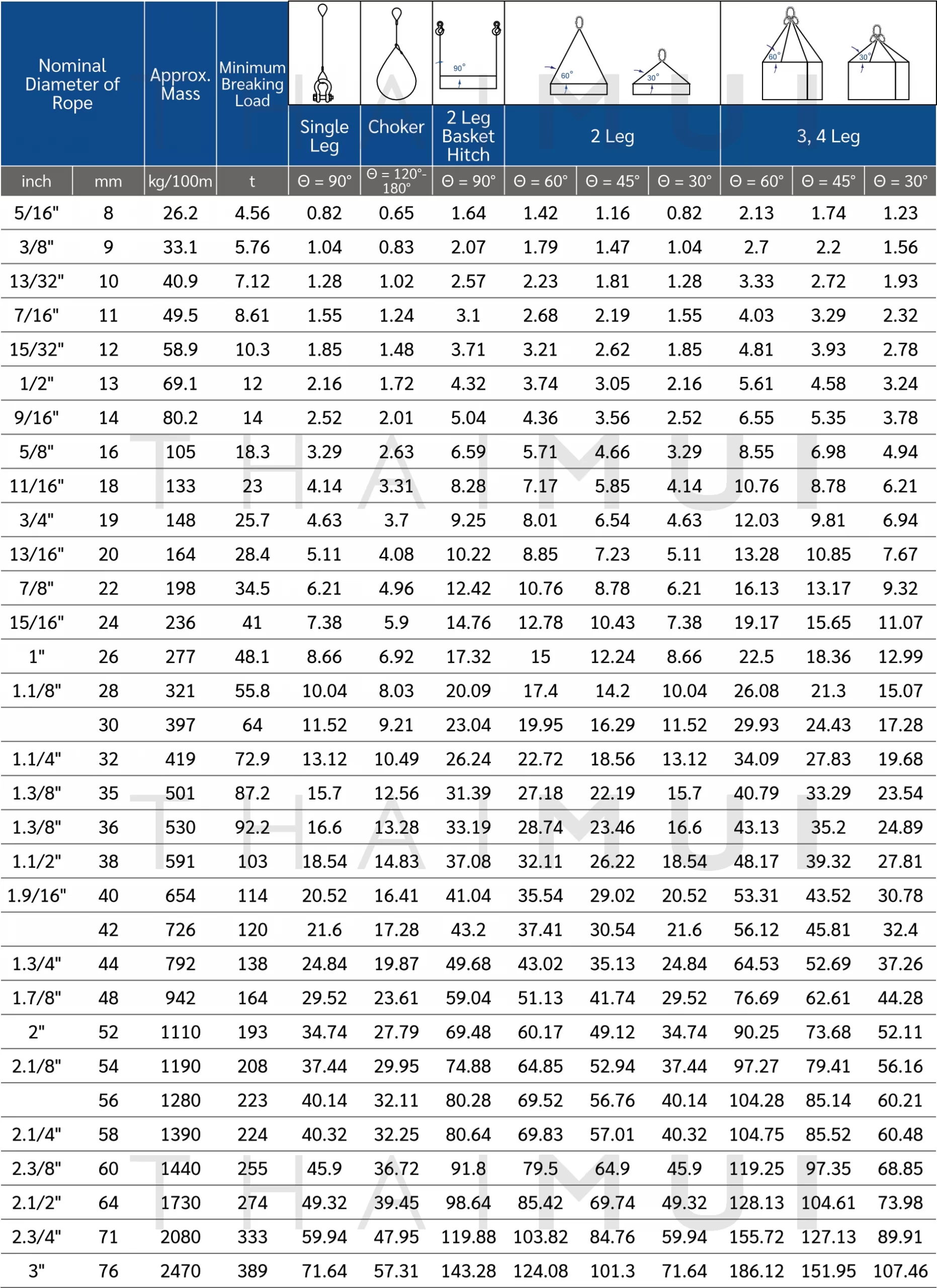

Wire Rope IWRC Grade 1960 N/mm2 (EIPS or 200kgf/mm2)

Bridon blue strand Steel Wire Rope 6×36 (Warrington Seale) IWRC Grade I960 N/mm2 (EIPS or 200 kgf/mm2)

Wire Rope Capacity 5to1 1960

Remarks

  • The figure in the above table is calculated according to BSEN 13414-1 : 2003 (some value might not be the same as indicated in the standard which caused by minimum breaking load of rope.)
  • Rated capacities based on pin diameter or hook no longer than the natural eye width (1/2xEye Length) or less than the nominal sling diameter.
  • Horizontal sling angles of less than 30 are not recommended (refer to BSEN 13414-1 for full details.)
Wire Rope IWRC Grade 1770 N/mm2 (IPS or 180kgf/mm2)

Bridon Blue Strand Steel Wire Rope 6×36 (Warrington Seale) IWRC Grade 1770 N/mm2 (IPS or 180 kgf/mm2)

Wire Rope Capacity 5to1 1770

Remarks

  • The figure in the above table is calculated according to BSEN 13414-1 : 2003 (some value might not be the same as indicated in the standard which caused by minimum breaking load of rope.)
  • Rated capacities based on pin diameter or hook no longer than the natural eye width (1/2xEye Length) or less than the nominal sling diameter.
  • Horizontal sling angles of less than 30 are not recommended (refer to BSEN 13414-1 for full details.)

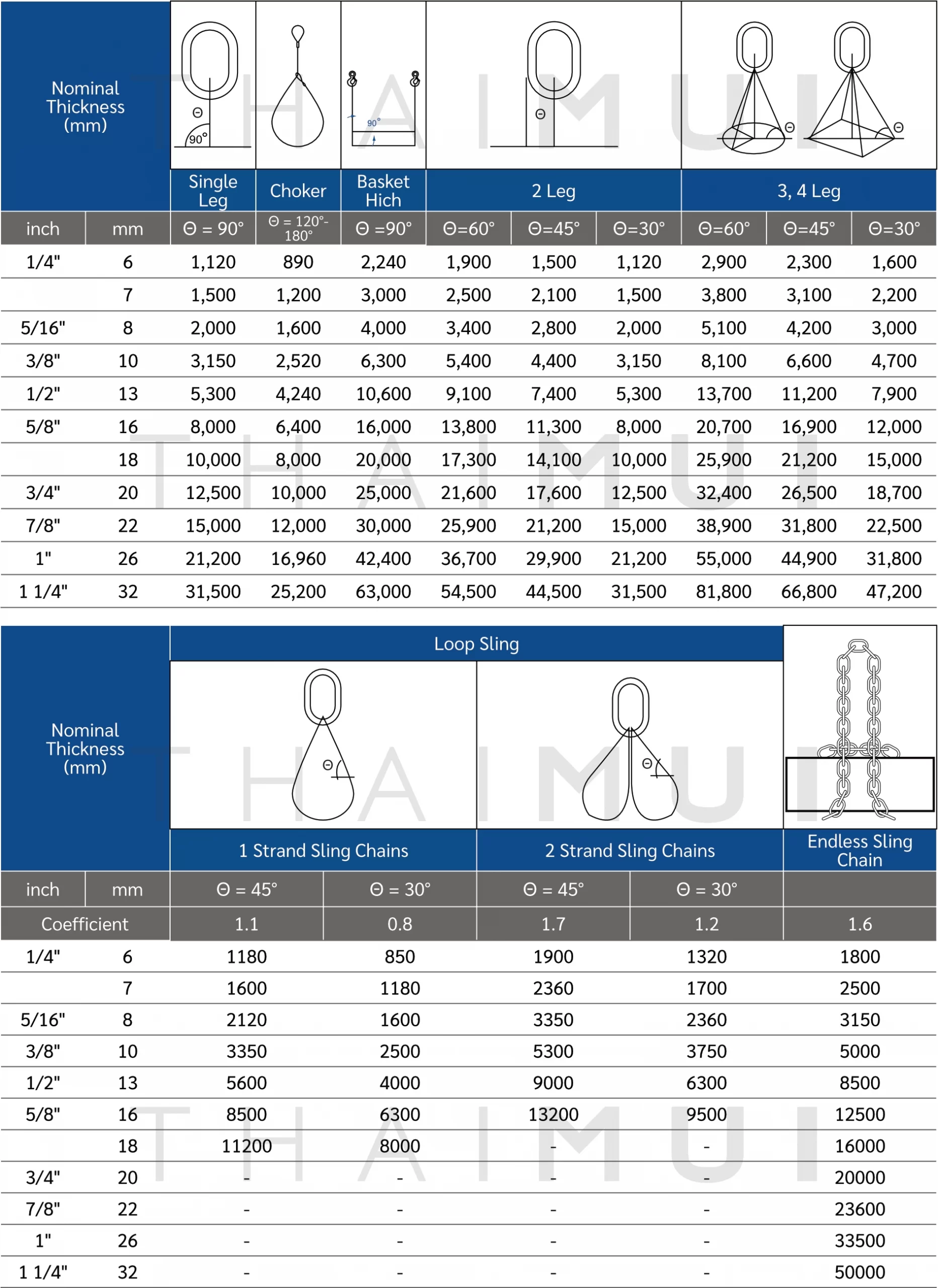

Working Load for Sling Chains (kg) of GR.8 ACC-EN818-4
Working Load for Sling Chain
