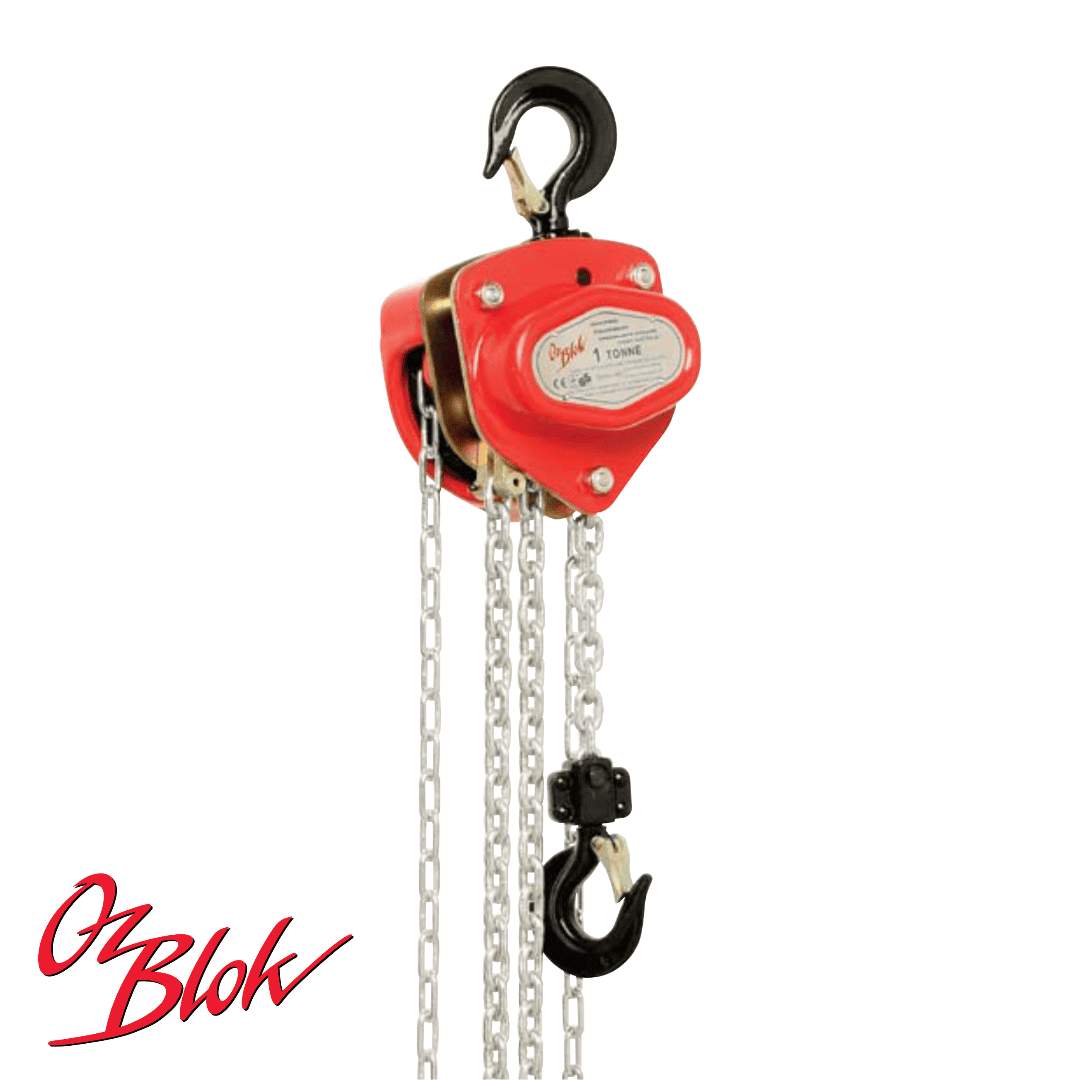

รอก OzBlok “S” Series Chain Hoists
รายละเอียด และ ขนาด
- Lightweight robust construction
- Super strength alloy loadchain
- Fully machined liftwheel
- Minimum headroom
- Minimum effort to raise maximum load
- Cast steel safety latches
- Lower hook complete with thrust race
- Fully enclosed gear train
- Weather protected automatic Weston brake with unique Twin Pawls
- Galvanised handchain as standard
- Durable baked enamel paint protection
- Stainless Steel labels
- Spare parts always available

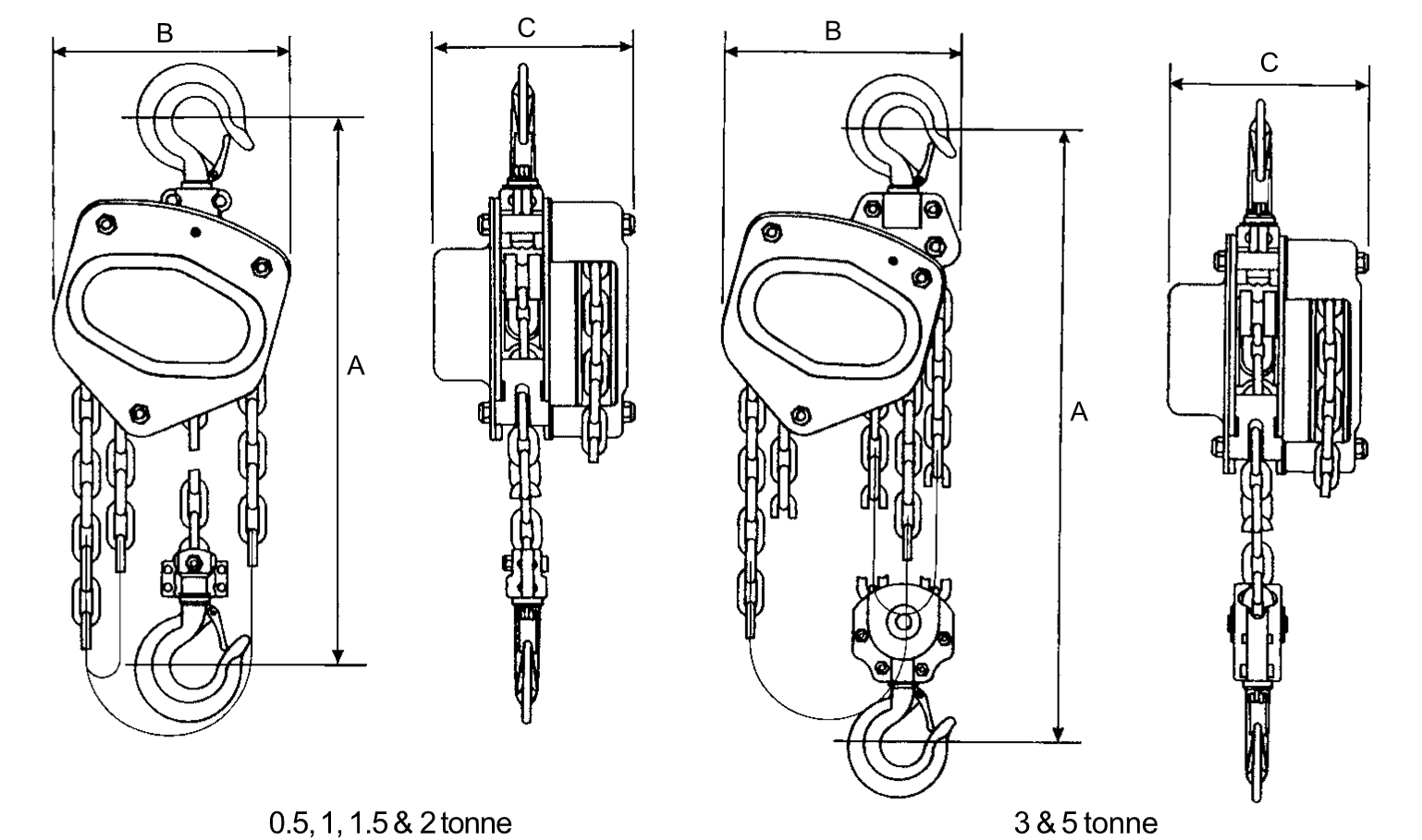

Product Code WLL Standard Lift Falls of Chain Effort to lift WLL Net Weight Loadchain Diameter Clearance Dimensions A (Headroom) B (Width) C (Depth) Hook opening (upper) Hook opening (lower) t m kg kg mm mm mm mm mm mm SOCB05 0.5 3 1 23 10 6 270 127 131 30 30 SOCB1 1 3 1 30 12 6 317 158 140 28 28 SOCB1.5 1.5 3 1 32 13 8 399 187 161 36 36 SOCB2 2 3 1 35 22 8 414 187 161 33.5 33.5 SOCB3 3 3 2 27 32 8 465 210 161 40 40 SOCB5 5 3 2 41 46 10 636 253 161 50 50 SOCB10 10 3 4 39 68 10 750 373 184 64 64
| Product Code | WLL | Standard Lift | Falls of Chain | Effort to lift WLL | Net Weight | Loadchain Diameter | Clearance Dimensions | ||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| A (Headroom) | B (Width) | C (Depth) | Hook opening (upper) | Hook opening (lower) | |||||||
| t | m | kg | kg | mm | mm | mm | mm | mm | mm | ||
| SOCB05 | 0.5 | 3 | 1 | 23 | 10 | 6 | 270 | 127 | 131 | 30 | 30 |
| SOCB1 | 1 | 3 | 1 | 30 | 12 | 6 | 317 | 158 | 140 | 28 | 28 |
| SOCB1.5 | 1.5 | 3 | 1 | 32 | 13 | 8 | 399 | 187 | 161 | 36 | 36 |
| SOCB2 | 2 | 3 | 1 | 35 | 22 | 8 | 414 | 187 | 161 | 33.5 | 33.5 |
| SOCB3 | 3 | 3 | 2 | 27 | 32 | 8 | 465 | 210 | 161 | 40 | 40 |
| SOCB5 | 5 | 3 | 2 | 41 | 46 | 10 | 636 | 253 | 161 | 50 | 50 |
| SOCB10 | 10 | 3 | 4 | 39 | 68 | 10 | 750 | 373 | 184 | 64 | 64 |
