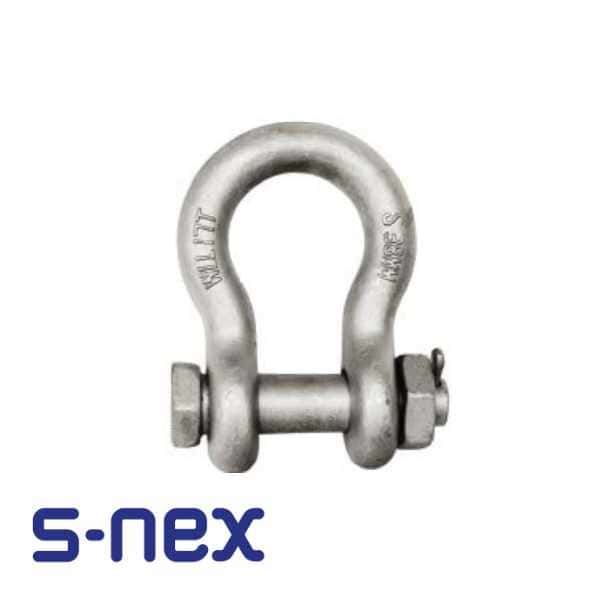

สเก็น S-NEX (SG-1130) Safety Anchor Bolt Type Shackles

สเก็น S-NEX (SG-1130) Safety Anchor Bolt Type Shackles

Categories: สเก็น (Shackle), S-NEX

รายละเอียด และ ขนาด


Size of Chain		Dimension (mm)					W.L.L. (t)	Weight (kg)
inch	mm	A	B	C	D	F	W.L.L. (t)	Weight (kg)
1/4	6	6.30	7.90	28.7	11.9	19.8	0.50	0.05
5/16	8	7.90	9.60	31.0	13.4	21.3	0.75	0.10
3/8	10	9.60	11.2	36.6	16.8	26.2	1.00	0.15
7/16	11	11.2	12.7	42.9	19.1	29.5	1.5	0.22
1/2	13	12.7	16.0	47.8	20.5	33.2	2.00	0.36
5/8	16	17.5	19.1	60.5	26.9	42.9	3.25	0.63
3/4	19	20.6	22.4	71.5	31.8	50.8	4.75	1.23
7/8	22	24.6	25.4	84.0	36.5	57.8	6.50	1.79
1	25	26.9	28.7	95.5	42.9	68.5	8.50	2.28
1 1/8	29	31.8	31.8	108	45.9	74.0	9.50	3.75
1 1/4	32	35.1	35.1	119	51.5	82.4	12.0	5.31
1 3/8	35	38.1	38.1	133	57.1	92.1	13.5	7.18
1 1/2	38	41.1	41.4	146	60.4	98.4	17.0	8.62
1 3/4	45	57.0	51.0	178	73.0	127	25.0	15.4
2	51	61.0	57.0	197	82.5	146	35.0	23.7
2 1/2	63	79.5	70.0	267	105	184	55.0	44.6
3	76	92.0	82.5	330	127	200	85.0	70.0
3 1/2	89	105	95.5	372	133	229	120	120
4	102	116	108	368	140	254	150	153

แบรนด์	S-NEX
