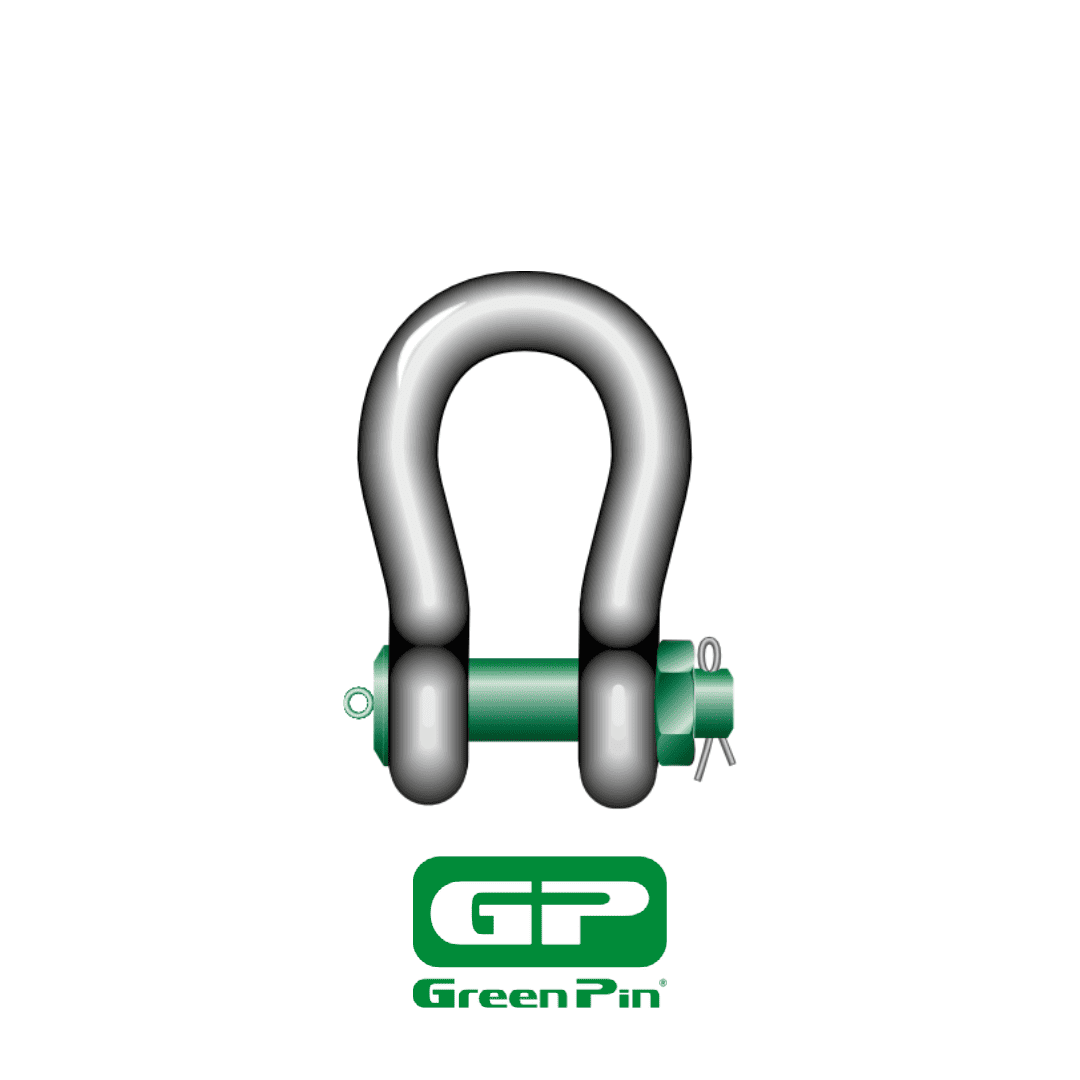

สเก็น โอเมก้า Green Pin Heavy Duty Bow Shackle with Safety Bolt P-6036
รายละเอียด และ ขนาด
- Material: bow and pin alloy steel, grade 8, quenched and tempered
- Safety Factor: MBL equals 5 x WLL
- Finish: shackle bow painted silver, pin painted green (120 tons shackle is hot dipped galvanized)
- Temperature Range: -20°C up to +200°C
Reference: Green Pin
| Working Load Limit | Diameter body | Diameter pin | Diameter eye | Width eye | Width inside | Length inside | Width bow | Length | Length bolt | Width | Thickness nut | Weight each |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| a | b | c | d | e | f | g | h | i | j | k | ||
| t | mm | mm | mm | mm | mm | mm | mm | mm | mm | mm | mm | kg |
| 120 | 95 | 95 | 208 | 95 | 147 | 400 | 238 | 647 | 453 | 428 | 50 | 110 |
| 150 | 105 | 108 | 238 | 105 | 169 | 410 | 275 | 688 | 496 | 485 | 50 | 160 |
| 200 | 120 | 130 | 279 | 120 | 179 | 513 | 290 | 838 | 564 | 530 | 70 | 235 |
| 250 | 130 | 140 | 299 | 130 | 205 | 554 | 305 | 904 | 614 | 565 | 70 | 295 |
| 300 | 140 | 150 | 325 | 140 | 205 | 618 | 305 | 996 | 644 | 585 | 80 | 368 |
| 400 | 170 | 175 | 376 | 164 | 231 | 668 | 325 | 1114 | 690 | 665 | 70 | 560 |
| 500 | 180 | 185 | 398 | 164 | 256 | 718 | 350 | 1190 | 720 | 710 | 70 | 685 |
| 600 | 200 | 205 | 444 | 189 | 282 | 718 | 375 | 1243 | 810 | 775 | 70 | 880 |
| 700 | 210 | 215 | 454 | 204 | 308 | 718 | 400 | 1263 | 870 | 820 | 70 | 980 |
| 800 | 210 | 220 | 464 | 204 | 308 | 718 | 400 | 1270 | 870 | 820 | 70 | 1100 |
| 900 | 220 | 230 | 485 | 215 | 328 | 718 | 420 | 1296 | 920 | 860 | 70 | 1280 |
| 1000 | 240 | 240 | 515 | 215 | 349 | 718 | 420 | 1336 | 940 | 900 | 70 | 1460 |
| 1250 | 260 | 270 | 585 | 230 | 369 | 768 | 450 | 1456 | 1025 | 970 | 70 | 1990 |
| 1500 | 280 | 290 | 625 | 230 | 369 | 818 | 450 | 1556 | 1025 | 1010 | 70 | 2400 |
| 600 | 190 | 200 | 348 | 170 | 289 | 741 | 490 | 1234 | 809 | 865 | 100 | 370 |
| 700 | 200 | 215 | 392 | 190 | 315 | 751 | 540 | 1284 | 879 | 901 | 100 | 400 |
| 800 | 218 | 230 | 420 | 200 | 342 | 851 | 554 | 1426 | 942 | 947 | 110 | 420 |
| 900 | 242 | 255 | 466 | 220 | 368 | 851 | 580 | 1488 | 1023 | 1023 | 120 | 440 |
| 1000 | 260 | 270 | 490 | 240 | 399 | 851 | 614 | 1532 | 1103 | 1107 | 120 | 460 |
| 1250 | 285 | 300 | 510 | 260 | 452 | 931 | 650 | 1666 | 1227 | 1182 | 150 | 530 |
| 1550 | 285 | 320 | 550 | 280 | 483 | 950 | 680 | 1710 | 1300 | 1253 | 150 | 560 |
