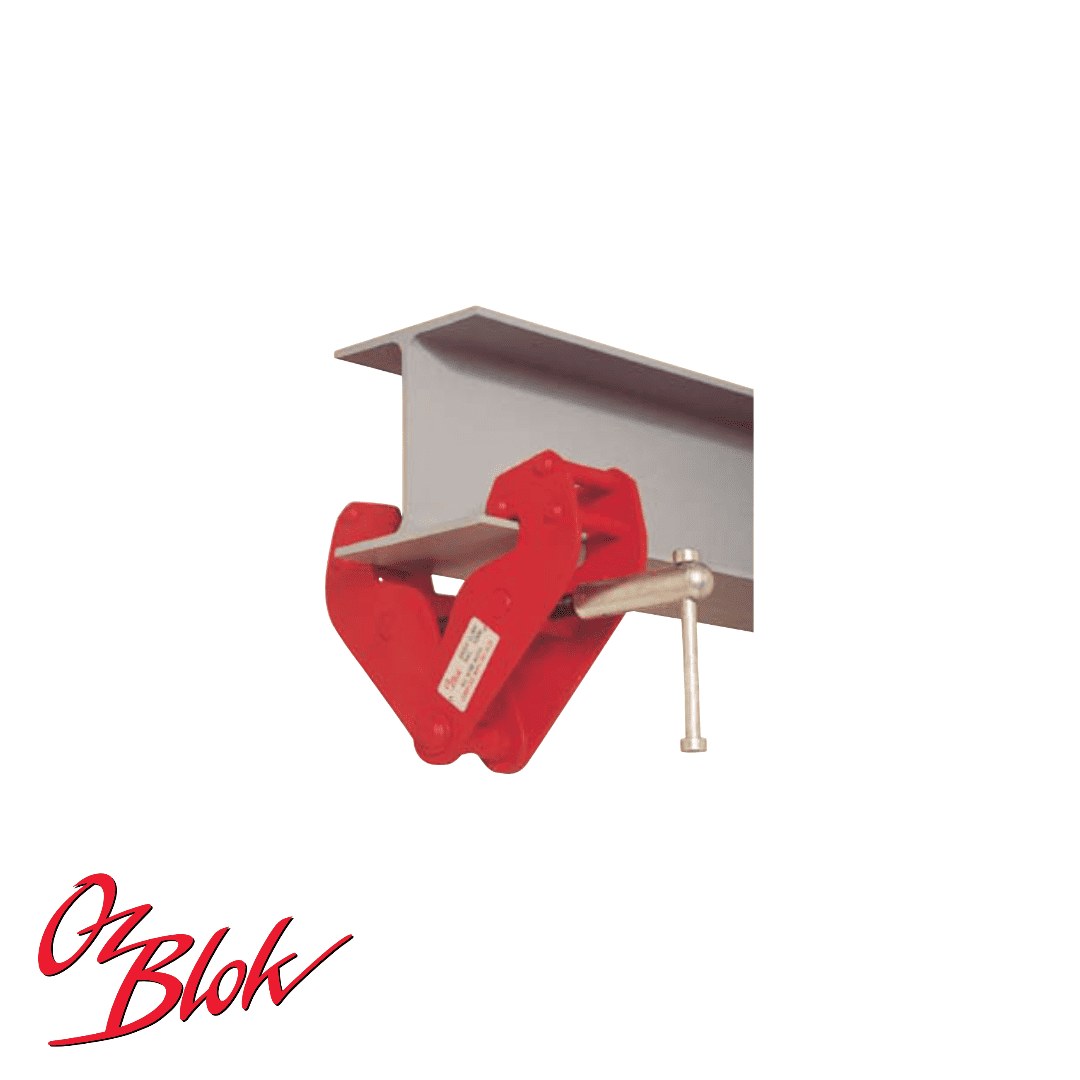

แคลมป์ OzBlok Girder Clamps
รายละเอียด และ ขนาด
- Robust all-steel construction
- Durable baked enamel paint protection
- Super-quick adjustment to any girder width in range
- Spare parts always available

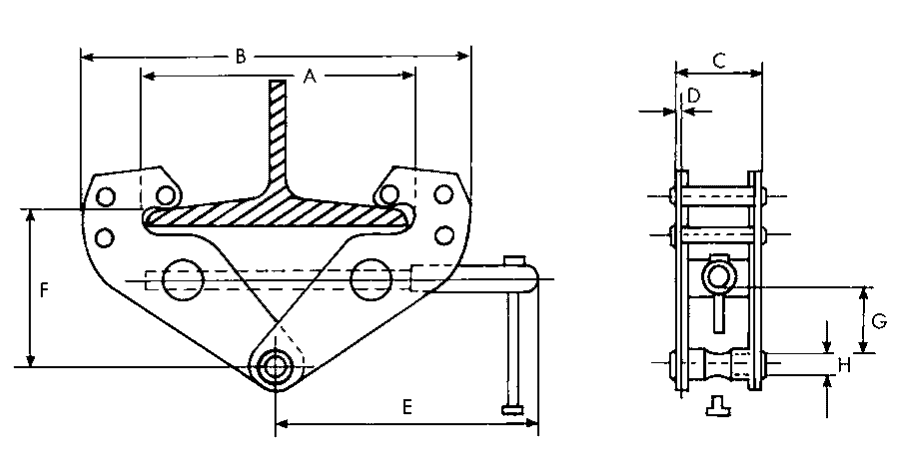

| Product Code | WLL | Adjustable Beam Width | Clearance Dimensions | |||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| A | B | C | D | E | F | G min | H | |||||
| min | max | min | max | |||||||||
| kg | mm | mm | mm | mm | mm | mm | mm | mm | mm | mm | mm | |
| OGC1 | 1000 | 75-230 | 278 | 182 | 380 | 64 | 4 | 217 | 90 | 150 | 26 | 19 |
| OGC2 | 2000 | 75-230 | 278 | 182 | 380 | 74 | 6 | 217 | 90 | 150 | 26 | 21 |
| OGC3 | 3000 | 80-320 | 356 | 220 | 500 | 100 | 8 | 277 | 145 | 220 | 50 | 23 |
| OGC5 | 5000 | 90-320 | 356 | 220 | 500 | 112 | 10 | 277 | 145 | 220 | 47 | 29 |
| OGC10 | 10000 | 90-320 | 356 | 250 | 520 | 120 | 12 | 285 | 160 | 230 | 52 | 39 |
