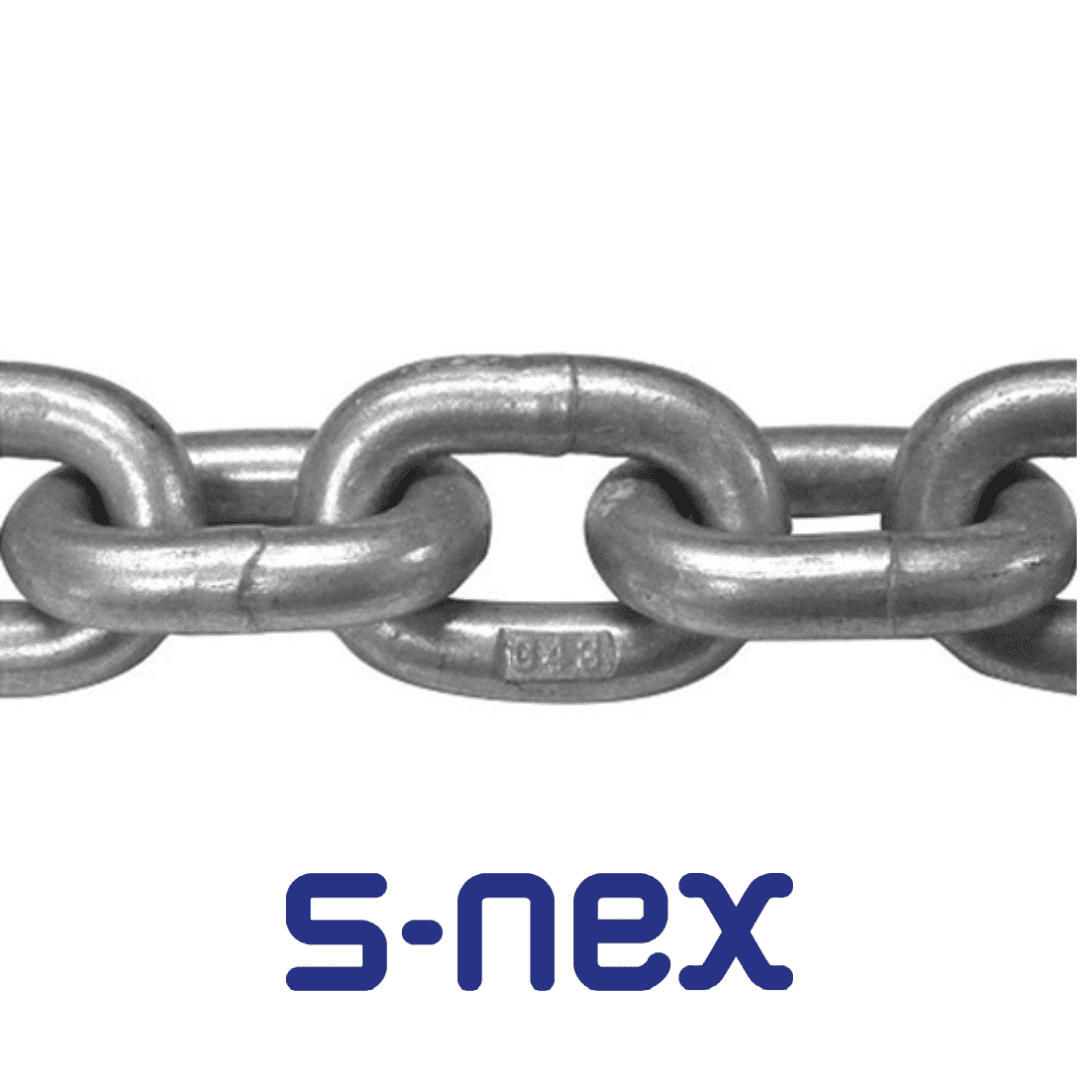

โซ่ S-NEX Grade43 High Test Chain

โซ่ S-NEX Grade43 High Test Chain

Categories: โซ่ (Chain), S-NEX

โซ่ S-NEX Grade43 High Test Chain

รายละเอียด และ ขนาด


Size	Dimensions				Mechanical Properties
	⌀ Diameter		L	W	Working Load Limit	Proof Test Min	Minimum Breaking Force	Elongation Min
	Min	Max	Max	Min	Working Load Limit	Proof Test Min	Minimum Breaking Force	Elongation Min
mm	mm	mm	mm	mm	kg	kN	kN	%
7.00	6.51	7.00	31.50	9.80	1180	17.30	34.60	15%
8.70	8.09	8.70	32.80	11.20	1770	26.00	52.00	15%
10.00	9.30	10.00	35.00	14.00	2450	36.00	72.00	15%
11.90	11.07	11.90	41.60	16.60	3270	48.00	96.00	15%
13.00	12.09	13.00	45.50	18.20	4170	61.30	122.60	15%
16.00	14.88	16.00	56.00	20.00	5910	86.50	173.00	15%

แบรนด์	S-NEX
