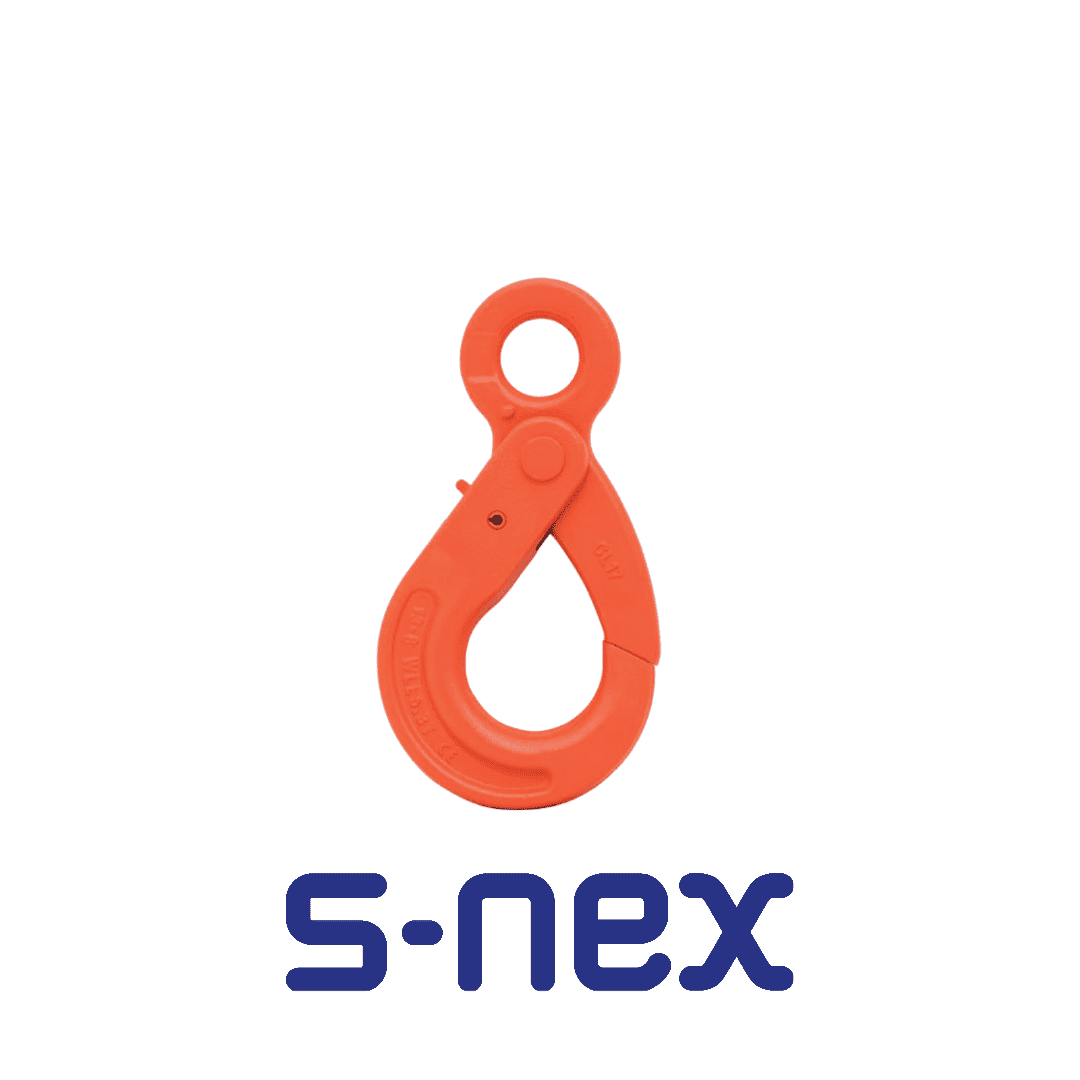

ตะขอ S-NEX Eye Self-Locking Hook S-NEX Grade80

รายละเอียด และ ขนาด

Material: Forged super alloy steel
100% tested at 2.5 times Working Load Limit
100% magnaflux crack detection
Breakage test
Fatigue tested at 1.5 times Working Load Limit for 20000 cycles
Suitable for EN818-2 G80 chain

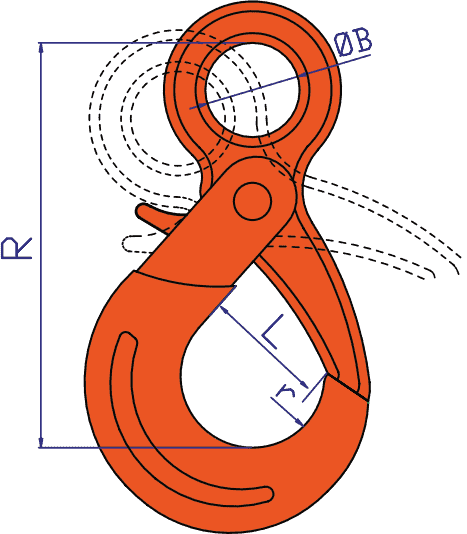

Size	Dimensions				W.L.L.	Weight
Size	B	L	R	r	W.L.L.	Weight
mm	mm	mm	mm	mm	t	kg
6	22.0	28.3	110.0	16.5	1.12	0.50
7/8	24.8	33.7	132.0	21.0	2.00	0.86
10	32.0	43.1	167.0	27.5	3.15	1.52
13	40.0	50.9	204.0	33.6	5.30	3.15
16	56.5	61.6	250.0	41.5	8.00	6.10
20	62.6	84.0	269.0	48.0	12.5	8.10
22	70.0	77.1	312.5	48.0	15.0	12.6
26	80.5	97.1	362.0	53.4	21.2	21.9
32	105	168	470.0	83.0	31.5	44.4

แบรนด์	S-NEX
