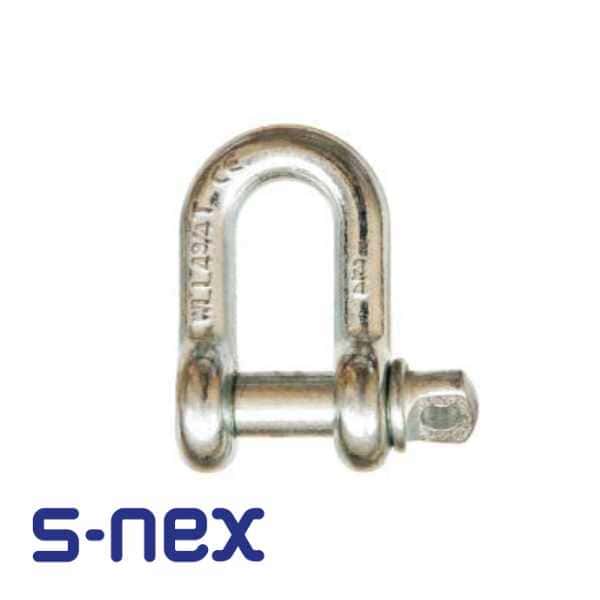

สเก็น S-NEX (SG-100) Screw Pin Chain Shackles

สเก็น S-NEX (SG-100) Screw Pin Chain Shackles

Categories: สเก็น (Shackle), S-NEX

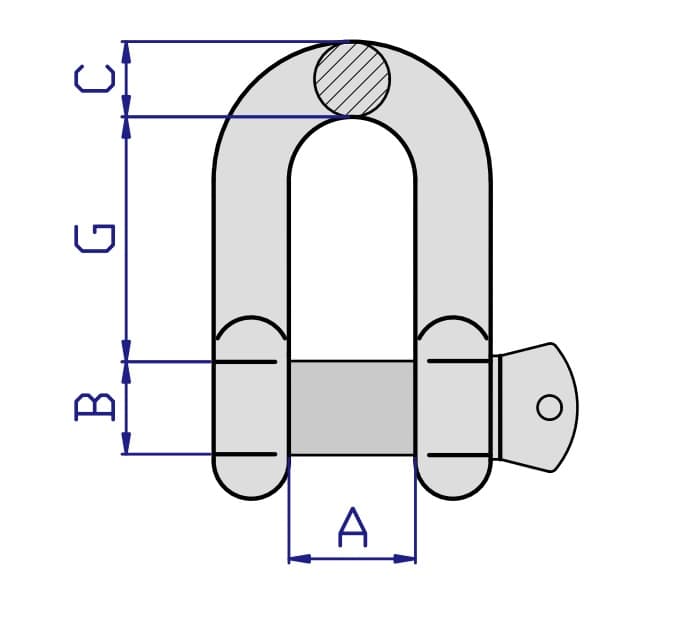

Specification and Dimension


Size of Chain		Dimension (mm)				W.L.L. (t)	Weight (kg)
inch	mm	A	B	C	G	W.L.L. (t)	Weight (kg)
1/4	6	11.9	7.90	6.30	19.1	0.50	0.06
5/16	8	13.5	9.60	7.80	25.4	0.75	0.10
3/8	10	16.8	11.2	9.60	34.0	1.00	0.15
7/16	11	19.1	12.7	11.2	36.1	1.50	0.22
1/2	13	20.6	16.0	12.7	41.4	2.00	0.34
5/8	16	26.9	19.1	16.0	51.0	3.25	0.67
3/4	19	31.8	22.4	20.6	60.5	4.75	1.14
7/8	22	36.6	25.4	24.6	71.5	6.50	1.74
1	25	42.9	28.7	25.4	81.0	8.50	2.52
1 1/8	29	46.0	31.8	31.8	91.0	9.50	3.45
1 1/4	32	51.5	35.1	35.1	100.0	12.0	4.90
1 3/8	35	57.1	38.1	38.1	111.1	13.5	6.24
1 1/2	38	60.5	41.4	41.1	122.0	17.0	8.39
1 3/4	45	73.0	51.0	54.0	146.0	25.0	14.2
2	51	82.5	57.0	60.0	172.0	35.0	21.2
2 1/2	63	105	70.0	66.5	203.0	55.0	38.6
3	76	127	82.5	89.0	216.0	85.0	56.0

แบรนด์	S-NEX
