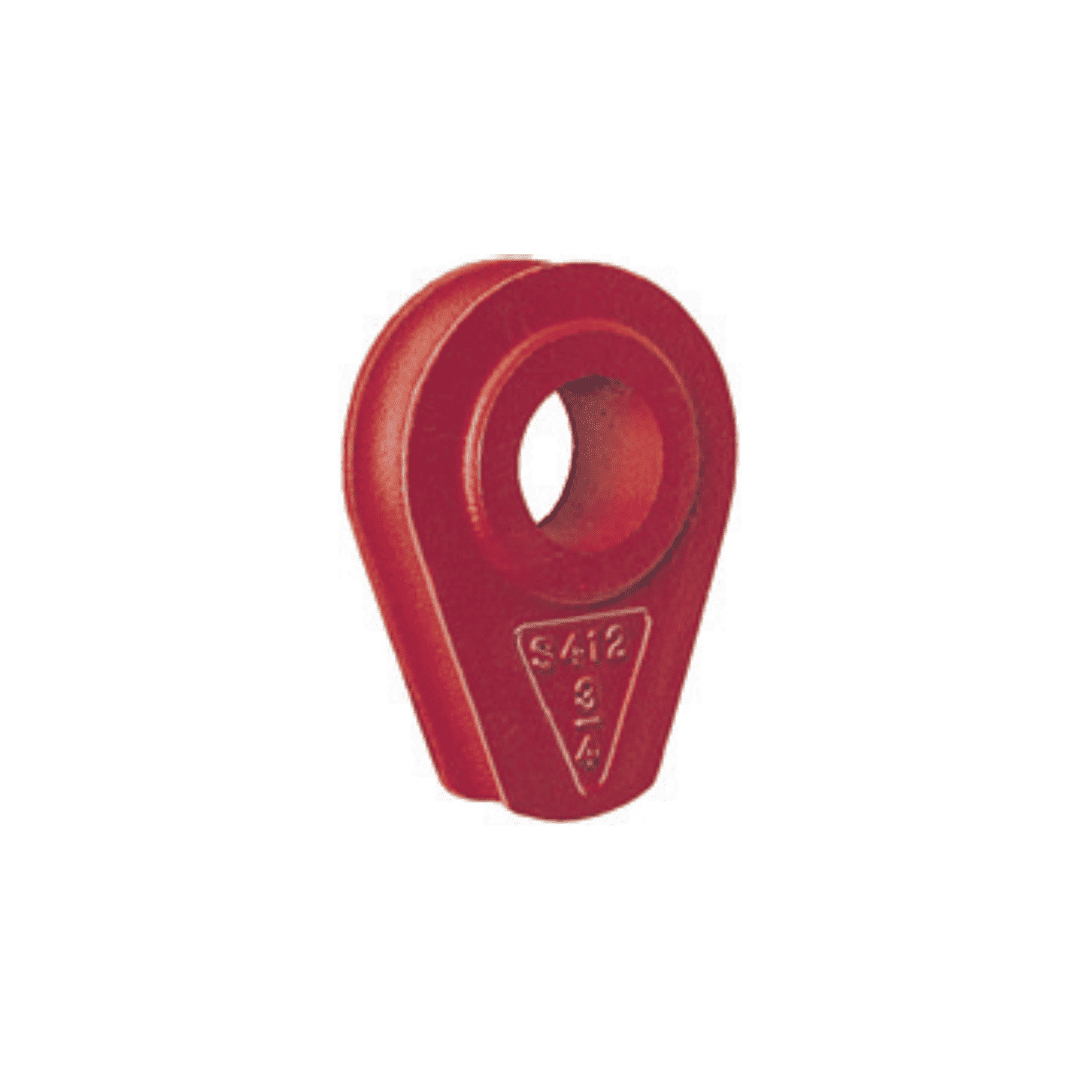

ห่วงหัวใจ Solid Wire Rope Thimbles
Related products
ห่วงหัวใจ (Thimbles)
ลวดสลิง (Wire Rope)
Grommet
ลวดสลิง (Wire Rope)
ลวดสลิง (Wire Rope)
อุปกรณ์เข้าหัวลวดสลิง (Wire Rope End Fittings)
ห่วงหัวใจ (Thimbles)
ลวดสลิง (Wire Rope)

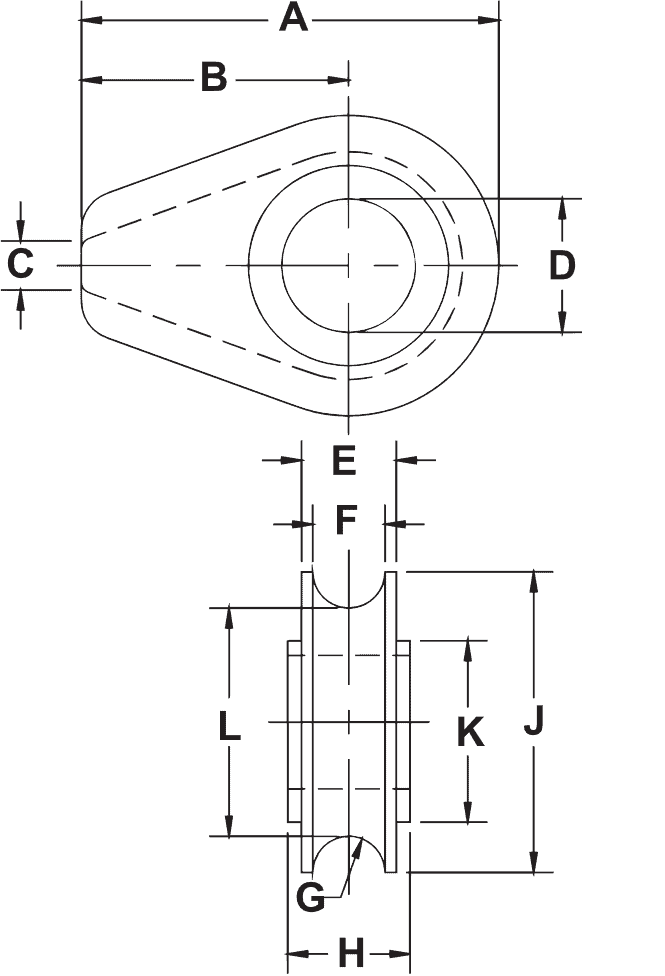

Rope Diameter | Weight Per 100 | Dimensions (mm) | |||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|
A | B | c | D | E | F | G | H | J | K | L | |||
mm | inch | kg | mm | mm | mm | mm | mm | mm | mm | mm | mm | mm | mm |
13 | 1/2 | 0.28 | 71.5 | 44.5 | 6.35 | 26.9 | 19.1 | 14.2 | 7.10 | 22.4 | 54.0 | 41.4 | 39.6 |
16 | 5/8 | 1.00 | 119 | 76.0 | 9.65 | 33.3 | 26.9 | 20.6 | 10.4 | 28.7 | 86.0 | 57.0 | 65.0 |
18-20 | 3/4 | 1.05 | 119 | 76.0 | 9.65 | 38.1 | 26.9 | 20.6 | 10.4 | 35.1 | 86.0 | 57.0 | 65.0 |
22 | 7/8 | 2.47 | 154 | 97.0 | 12.7 | 44.5 | 35.1 | 26.9 | 13.5 | 41.4 | 114 | 82.5 | 87.5 |
24-26 | 1 | 2.38 | 154 | 97.0 | 12.7 | 54.0 | 35.1 | 26.9 | 13.5 | 46.0 | 114 | 82.5 | 87.5 |
28-30 | 1 1/8 | 4.21 | 184 | 116 | 16.0 | 60.5 | 44.5 | 33.3 | 16.8 | 52.5 | 137 | 98.5 | 103 |
32-35 | 1 1/4 - 1 3/8 | 4.45 | 184 | 116 | 16.0 | 67.0 | 49.3 | 38.9 | 19.8 | 58.5 | 137 | 98.5 | 105 |
แบรนด์ |
---|
