ลวดสลิง Bridon Dyform Bristar 6

ลวดสลิงไส้เหล็ก
ลวดสลิงรีดกลม (Compacted Wire Rope)
ลวดสลิงเสริมไส้พลาสติก (Plastic Impregnated Wire Rope)
ลวดสลิงสำหรับเครน (Crane)
ลวดสลิงสำหรับรถเครน (Mobile Crane)
ลวดสลิงสำหรับทาวเวอร์เครน (Tower Crane)
ลวดสลิงสำหรับคอนเทนเนอร์เครน (Container Crane)

Bridon products provide solutions in markets where there can be no compromise over product performance and integrity, such as in construction, mining, oil & gas extraction, telecommunications and other specialized areas of engineering.

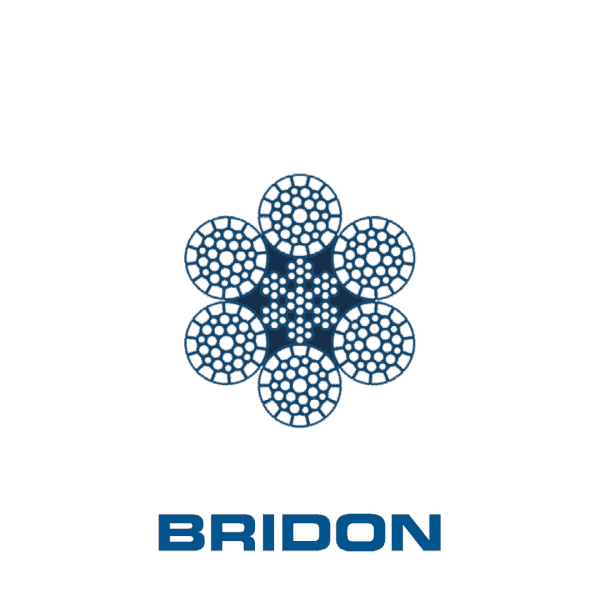

Dyform Bristar 6 is a high performance compacted single layer constructed
rope which incorporates an engineered extruded plastic profile between
the 6 outer strands and the rope core for various oil and gas applications
including drilling lines and marine riser tensioner lines.
– Outstanding bending fatigue performance
– Improved support of outer strands in service


Diameter		Nominal length mass		Minimum Breaking Force
Diameter		Nominal length mass		EIP/1960			EEIP/2160
mm	inch	kg/m	lb/ft	kN	Tons (short)	Tons (metric)	kN	Tons (short)	Tons (metric)
	5/16	0.289	0.194	55.2	6.2	5.63	57.5	6.46	5.86
8		0.294	0.197	55.2	6.2	5.63	57.5	6.46	5.86
9		0.372	0.25	69.9	7.86	7.13	72.8	8.18	7.42
	3/8	0.416	0.28	78.2	8.79	7.97	81.5	9.16	8.31
10		0.459	0.308	86.2	9.69	8.79	89.9	10.1	9.17
11		0.555	0.373	106	11.9	10.8	109	12.3	11.1
	7/16	0.567	0.381	106	11.9	10.8	109	12.3	11.1
12		0.661	0.444	124	13.9	12.6	129	14.5	13.2
	1/2	0.74	0.497	136	15.3	13.9	145	16.3	14.8
13		0.776	0.521	142	16	14.5	152	17.1	15.5
14		0.9	0.605	165	18.5	16.8	176	19.8	17.9
	9/16	0.937	0.63	172	19.3	17.5	183	20.6	18.7
15		1.03	0.694	190	21.4	19.4	202	22.7	20.6
	5/8	1.16	0.777	212	23.8	21.6	230	25.9	23.5
16		1.18	0.79	212	23.8	21.6	230	25.9	23.5
17		1.33	0.891	239	26.9	24.4	260	29.2	26.5
18		1.49	1	268	30.1	27.3	291	32.7	29.7
19		1.66	1.11	299	33.6	30.5	324	36.4	33
	3/4	1.67	1.12	299	33.6	30.5	324	36.4	33
20		1.84	1.23	331	37.2	33.8	359	40.4	36.6
22		2.22	1.49	401	45.1	40.9	435	48.9	44.4
	7/8	2.27	1.52	401	45.1	40.9	435	48.9	44.4
24		2.64	1.78	477	53.6	48.6	518	58.2	52.8
	1	2.96	1.99	534	60	54.5	580	65.2	59.1
26		3.1	2.09	560	62.9	57.1	607	68.2	61.9
28		3.6	2.42	649	73	66.2	704	79.1	71.8
	1 1/8	3.75	2.52	676	76	68.9	734	82.5	74.8
30		4.13	2.78	745	83.7	76	809	90.9	82.5
	1 1/4	4.63	3.11	848	95.3	86.5	920	103	93.8
32		4.7	3.16	848	95.3	86.5	920	103	93.8
34		5.31	3.57	957	108	97.6	1040	117	106
	1 3/8	5.6	3.76	1010	114	103	1100	124	112
36		5.95	4	1070	120	109	1160	130	118
38		6.63	4.45	1200	135	122	1300	146	133
	1 1/2	6.66	4.48	1200	135	122	1300	146	133
40		7.34	4.93	1320	148	135	1440	162	147
	1 5/8	7.82	5.25	1410	158	144	1530	172	156
42		8.1	5.44	1460	164	149	1580	178	161
44		8.89	5.97	1600	180	163	1740	196	177
	1 5/8	9.07	6.09	1600	180	163	1740	196	177
46		9.71	6.53	1750	197	178	1900	214	194
	1 3/4	10.4	7	1910	215	195	2070	233	211
48		10.6	7.11	1910	215	195	2070	233	211
50		11.5	7.71	2070	233	211	2250	253	229
52		12	8.09	2034	207	228	144	32	2.3
54	2 1/8	13	8.72	2194	239	246	156	35	2.6
57.2	2 1/4	14.5	9.77	2370	269	266	174	39	3
63.5	2 1/2	17.9	12.1	2926	312	329	215	48	4.1
69.9	2 3/4	21.7	14.6	3546	361	398	261	59	5.4
73	2 7/8	23.7	15.9	3867	405	434	285	64	6.2
76.2	3	25.8	17.4	4214	430	473	310	70	7

Reference: Bridon Dyform Bristar 6

Wire Rope Grade	1960 N/mm2 – 200 kgf/mm2, 2160 N/mm2 – 220 kgf/mm2
