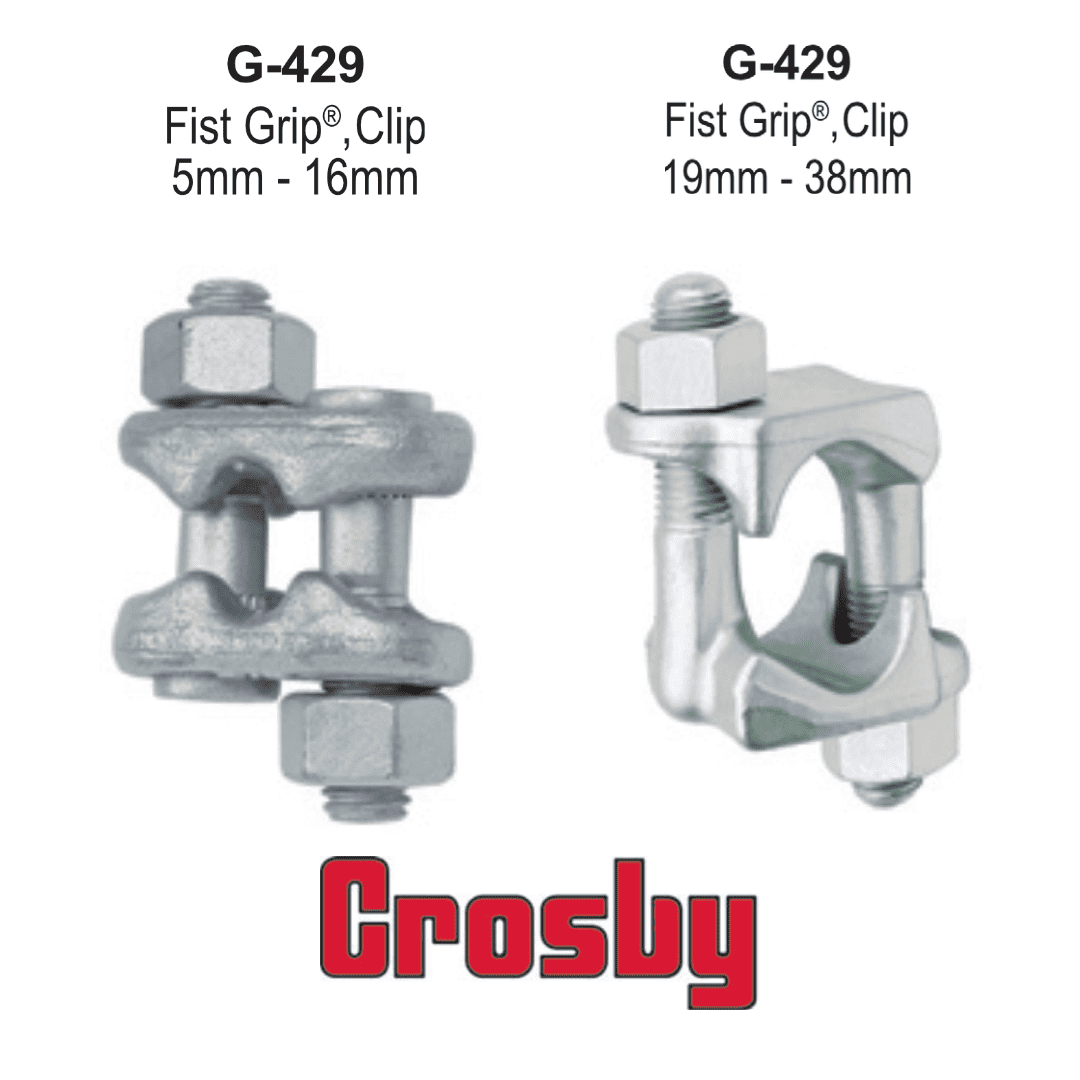

กิ๊บจับ ลวดสลิง Crosby Fist Grip Wire Rope Clips G-429
รายละเอียด และ ขนาด
- Entire clip is Galvanized to resist corrosive and rusting action.
- Based on the catalog breaking strength of wire rope, Crosby wire rope clips have an efficiency rating of 80% for 5mm through 22mm sizes, and 90% for sizes 24mm through 40mm.
- Bolts are an integral part of the saddle. Nuts can be installed in such a way as to enable the operator to swing the wrench in a full arc for fast installation.
- All sizes have forged steel saddles.
- All Clips are individually bagged or tagged with proper application instructions and warning information.
- Meets or exceeds all requirements of ASME B30.26 including identification, ductility , design factor, proof load and temperature requirements. Importantly, these wire rope clipsmeet other critical performance requirements including fatigue life, impact properties andmaterial traceability, not addressed by ASME B30.26.
- Assembled with standard heavy hex nuts
Reference: Crosby® 429 Fist Grip Clips

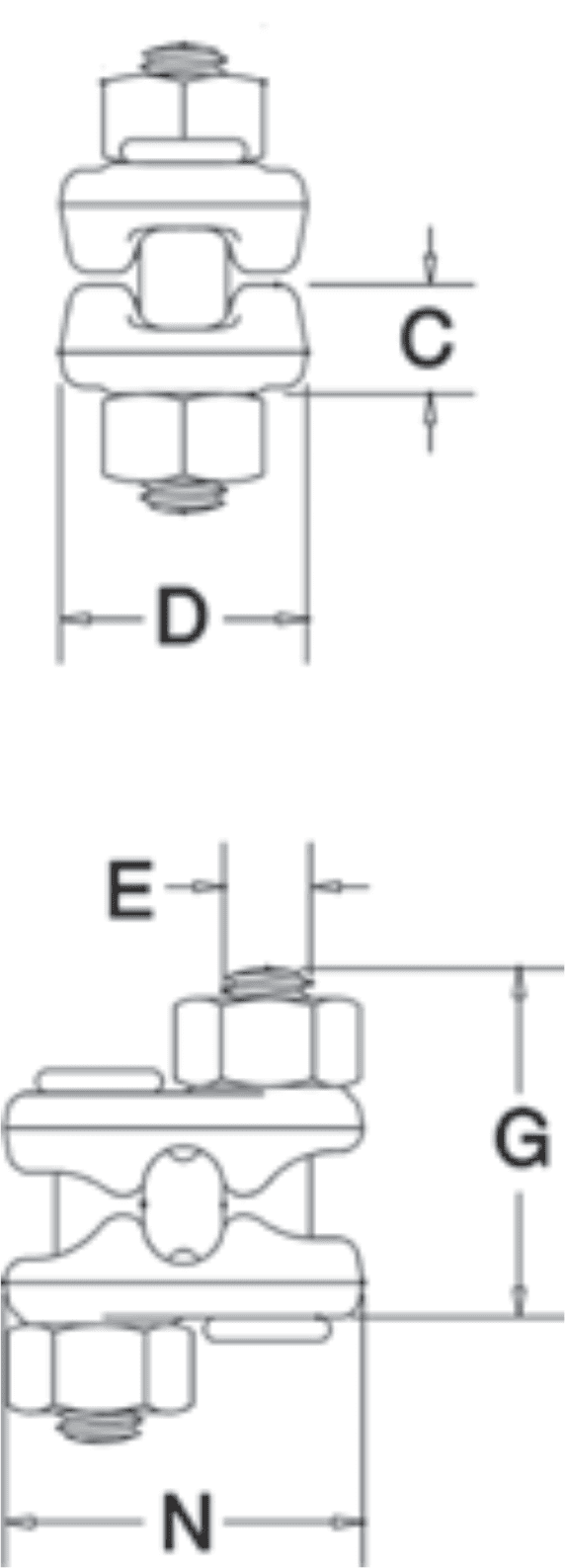

5mm-16mm

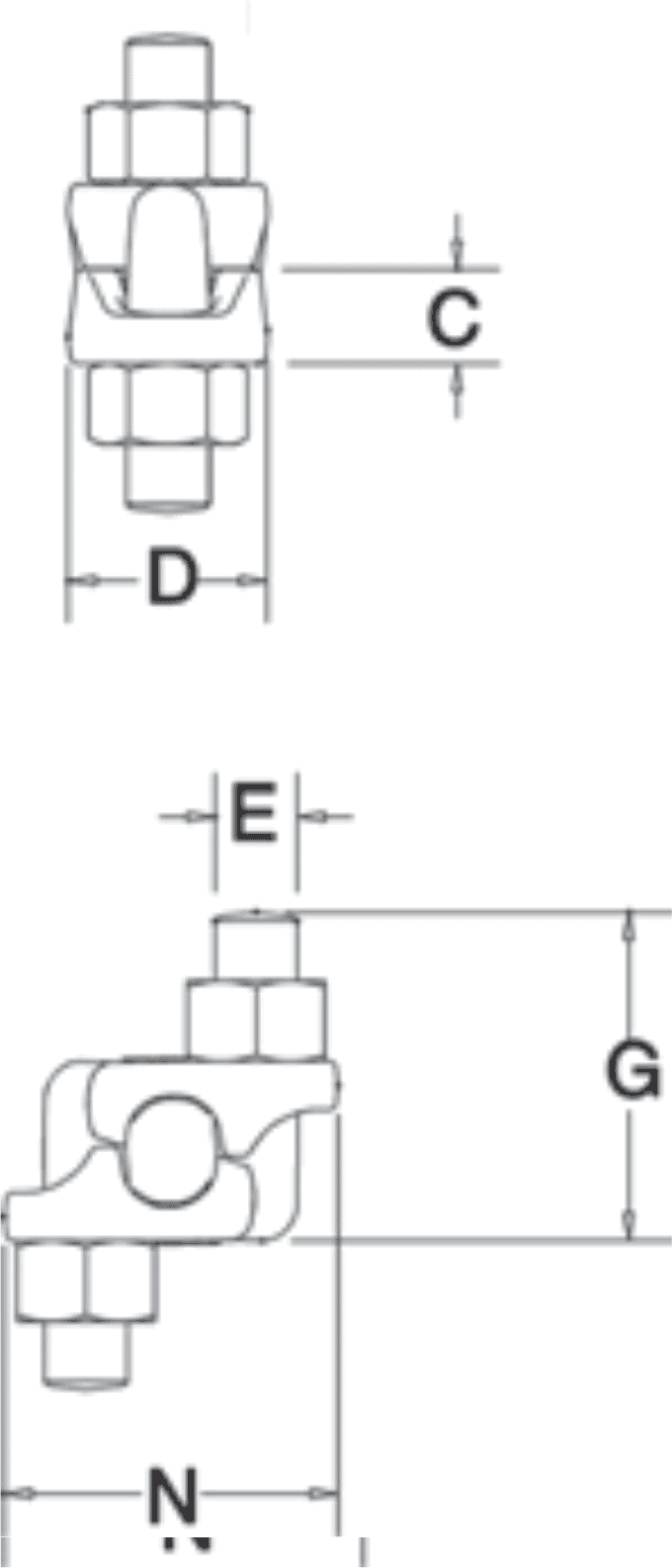

19mm-38mm
| Rope Size | G-429 Stock No. | Std. Package Qty. | Weight Per 100 k | Dimensions (mm) | |||||
|---|---|---|---|---|---|---|---|---|---|
| C | D | E | G | N | |||||
| mm | inch | mm | mm | mm | mm | mm | |||
| 5-7 | 3/16 - 1/4 | 1010471 | 100 | 10.4 | 10.2 | 23.9 | 9.65 | 32.5 | 36.6 |
| 8 | 5/16 | 1010499 | 100 | 12.7 | 11.9 | 26.9 | 9.65 | 37.3 | 39.1 |
| 10 | 3/8 | 1010514 | 50 | 18.1 | 13 | 26.9 | 11.2 | 46 | 45.2 |
| 11-13 | 7/16 - 1/2 | 1010532 | 50 | 28.1 | 15 | 31.8 | 12.7 | 55.5 | 54.6 |
| 14-16 | 9/16-5/8 | 1010550 | 50 | 46.7 | 18.3 | 38.1 | 16 | 68.5 | 65.3 |
| 18-20 | 3/4 | 1010578 | 25 | 79 | 21.8 | 46 | 19.1 | 74.5 | 67.8 |
| 22 | 7/8 | 1010596 | 25 | 102 | 24.6 | 53.8 | 19.1 | 84 | 72.6 |
| 24-26 | 1 | 1010612 | 10 | 136 | 28.7 | 57 | 19.1 | 94.5 | 77.7 |
| 28-30 | 1 1/8 | 1010630 | 10 | 181 | 32.5 | 60.5 | 22.4 | 107 | 874 |
| 32-34 | 1 1/4 | 1010658 | 10 | 181 | 34 | 63.5 | 22.4 | 108 | 90.4 |
| 36-40 | 1 3/8 - 1 1/2 | 1010676 | Bulk | 318 | 39.6 | 76 | 25.4 | 141 | 105 |
