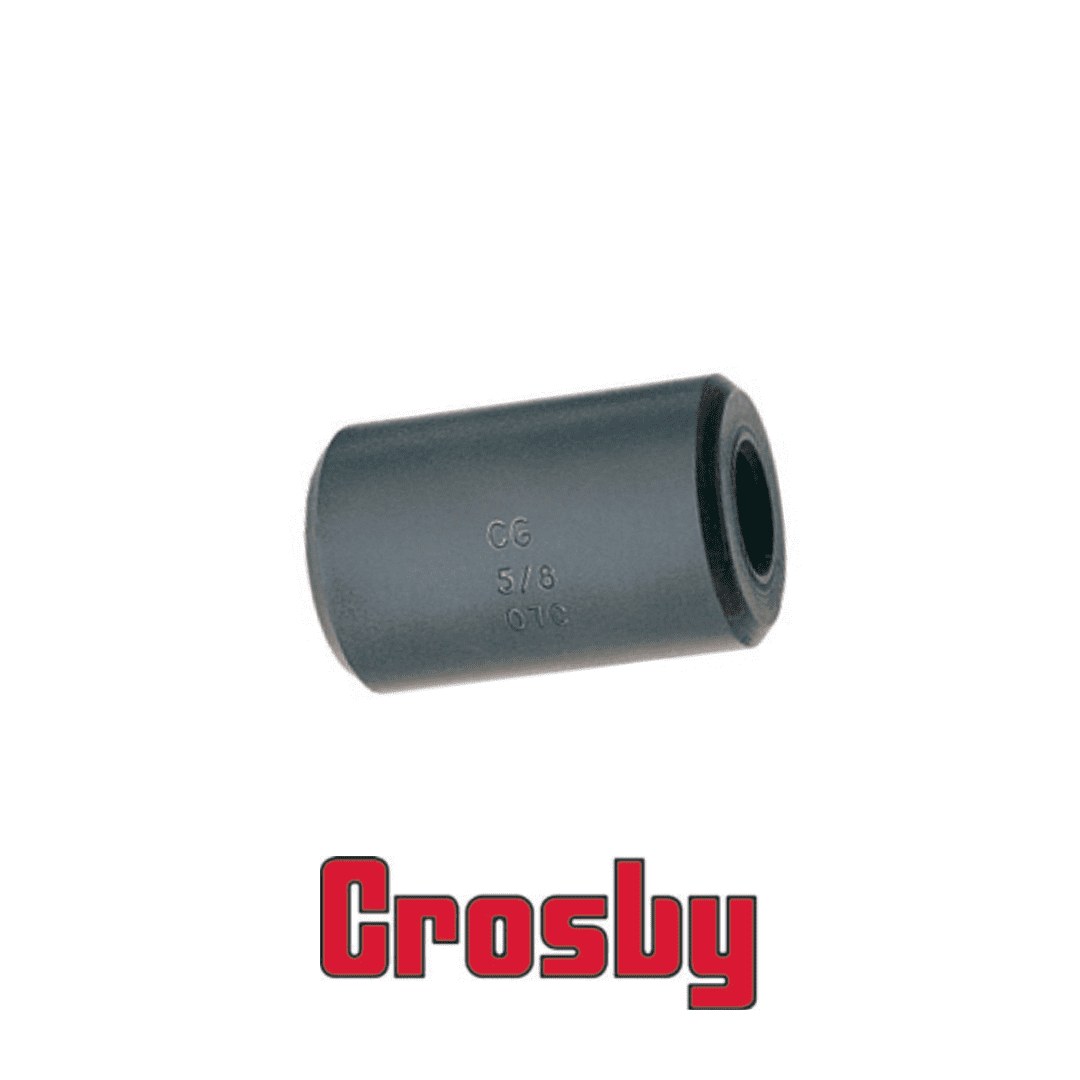

ซ็อกเก็ต ลวดสลิง Crosby National Swage Buttons S-409
รายละเอียด และ ขนาด
- Swage Button terminations have an efficiency rating of 98% based on the catalog strength of wire rope.
- Special processed, low carbon steel.
- COLD TUFF® for better swageability.
- Stamp for identification after swaging without concern for fractures (as per directions in the Wire Rope End Terminations User’s Manual).
Reference: Crosby S-409

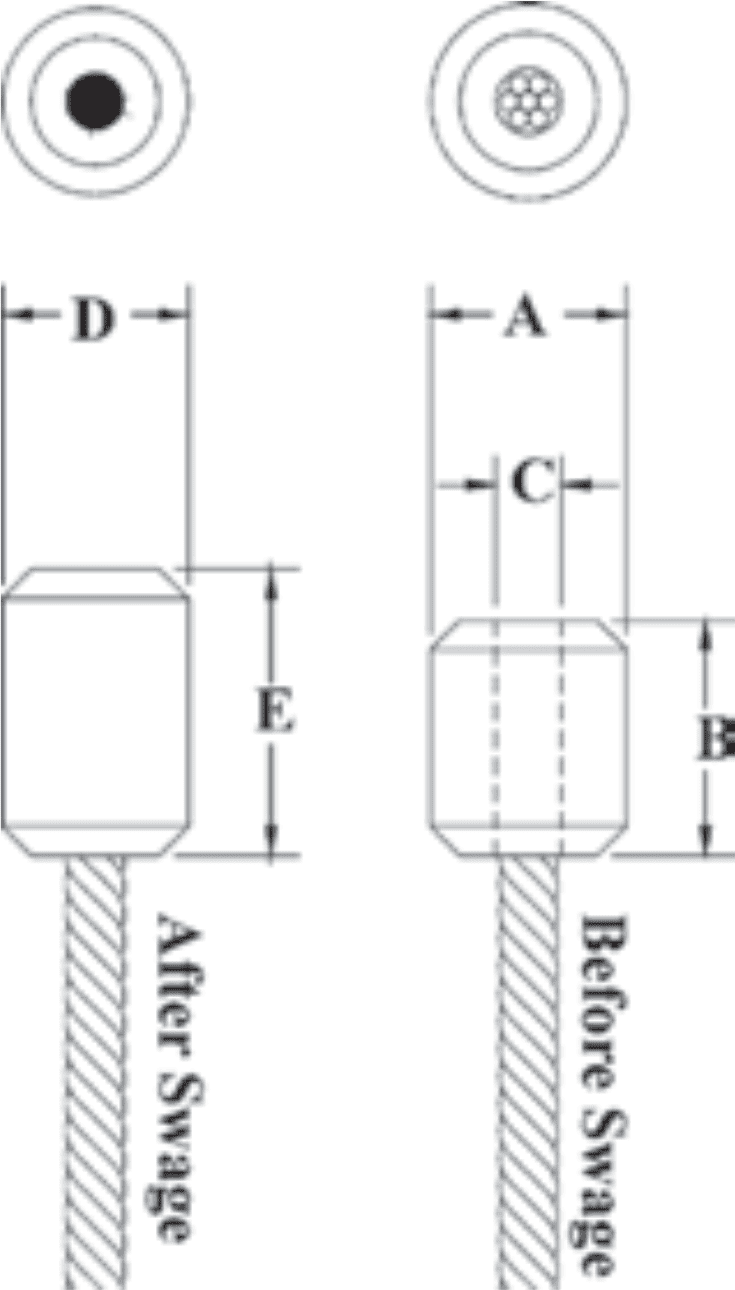

| S-409 Steel Swage Button Specifications | Swager / Die Data | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| S-409 Stock No. | Size No. | Wire Rope Size | Weight per 100 | Before Swage Dimensions | After Swage Dimensions | Die Description | Stock No. 500 Tons 1000 Tons 1500 Tons 5x7 | ||||
| A | B | C | D | E | |||||||
| mm | inch | kg | mm | mm | mm | mm | mm | ||||
| 1040171 | 1 SB | 3 | 1/8 | 0.91 | 10.7 | 12.7 | 3.56 | 10.2 | 15.5 | 1/8 - 1/4 Button | 1191621 |
| 1040215 | 3 SB | 5 | 3/16 | 1.81 | 14.2 | 17.8 | 5.08 | 13.2 | 21.3 | 1/4 1st Stage | 1197528 |
| 1040251 | 5 SB | 6-7 | 1/4 | 3.63 | 17.3 | 26.9 | 7.87 | 14.7 | 33.5 | 1/8 - 1/4 Button | 1191621 |
| 1040297 | 7 SB | 8 | 5/16 | 7.26 | 22.4 | 28.7 | 9.14 | 19.6 | 33.8 | 3/8 1st Stage | 1192364 |
| 1040313 | 8 SB | 9-10 | 3/8 | 6.8 | 22.4 | 37.6 | 10.7 | 19.6 | 42.9 | 3/8 1st Stage | 1192364 |
| 1040331 | 9 SB | 11 | 7/16 | 13.6 | 28.7 | 41.4 | 12.2 | 26.2 | 49.3 | 1/2 1st Stage | 1192408 |
| 1040359 | 10 SB | 13 | 1/2 | 22.7 | 33.3 | 48 | 14 | 29.5 | 55.1 | 5/8 Socket | 1192907 |
| 1040377 | 11 SB | 14 | 9/16 | 31.8 | 36.6 | 51.3 | 15.5 | 32.8 | 61.2 | 9/16 -5/8 Button | 1191665 |
| 1040395 | 12 SB | 16 | 5/8 | 45.4 | 39.6 | 61.5 | 17 | 36.1 | 73.4 | 3/4 Socket | 1192925 |
| 1040411 | 13 SB | 18-20 | 3/4 | 59 | 42.7 | 69.6 | 20.3 | 39.6 | 82.6 | 3/4 1st Stage | 1192462 |
| 1040439 | 14 SB | 22 | 7/8 | 100 | 50.8 | 83.1 | 23.9 | 45.7 | 98 | 7/8 1st Stage | 1192480 |
| 1040457 | 15 SB | 25-26 | 1 | 141 | 57.2 | 93.2 | 26.9 | 52.1 | 111 | 1 1st Stage | 1192505 |
| 1040475 | 16 SB | 28-29 | 1 1/8 | 204 | 65 | 103 | 30.2 | 58.4 | 122 | 1 1/8 1st Stage | 1192523 |
| 1040493 | 17 SB | 31-32 | 1 1/4 | 295 | 71.4 | 116 | 33.8 | 65 | 138 | 1 3/8 Socket | 1193023 |
