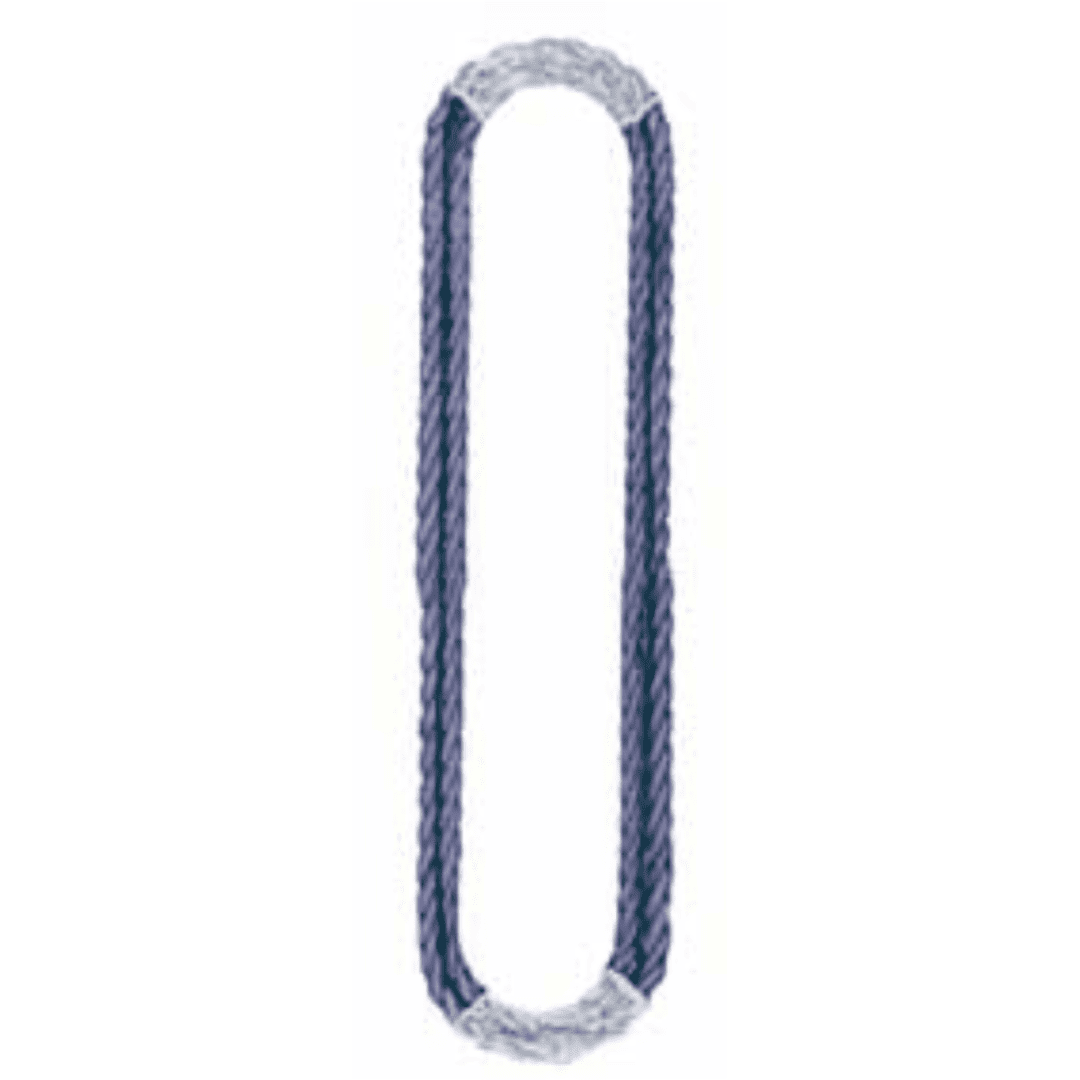

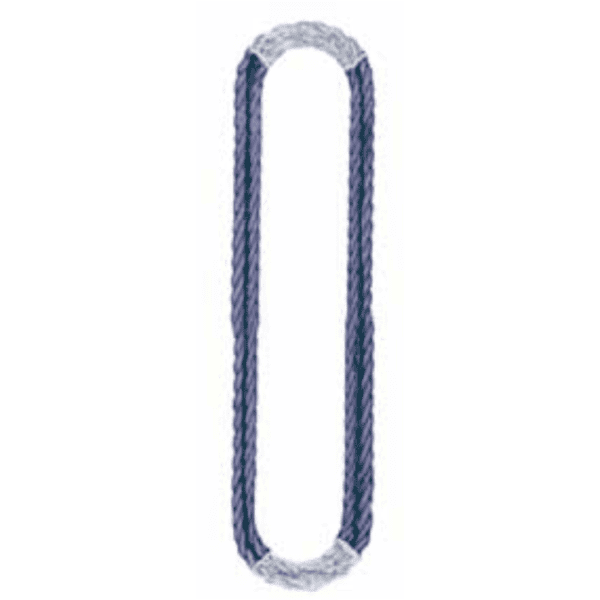

KimFlex Ultra Short Grommets

Flex Ultra Short Grommets

Categories: Grommet, Heavy Lift, THAIMUI

Flex Ultra Short Grommets

รายละเอียด และ ขนาด

CGBL = Calculated Grommet Breaking Load


Grommet Diameter		CGBL	CGBL	Unit Weight (In Double Part)	Minimum Effective Length
Grommet Diameter		EIPS	EEIPS	Unit Weight (In Double Part)	Minimum Effective Length
inch	mm	t	t	kg/m	m
3.1	80	161	-	15	1
3.8	96	583	-	22	1
4.4	112	351	-	30	1.25
5	128	438	-	39	1.25
6	152	625	-	55	1.25
6.9	176	845	-	74	1.5
7.6	192	957	-	88	1.75
8.2	208	1,097	-	103	1.75
8.8	224	1,306	-	120	2
9.1	232	1,381	-	129	2
10.1	256	1,697	-	157	2.25
10.7	272	1,931	-	177	2.25
11	280	2,038	-	188	2.25
11.3	288	2,157	-	198	2.5
12	304	2,410	-	221	2.5
12.6	320	2,621	-	245	2.75
13.2	336	2,808	3,101	270	2.75
13.9	352	3,253	3,578	296	3
15.1	384	3,697	4,079	352	3.25
15.7	400	4,212	4,603	383	3.5
16.4	416	4,212	4,603	414	3.5
18	456	5,242	5,780	500	3.75
18.9	480	5.827	6,412	558	3.75
20.2	512	6,412	7,043	623	4
22.4	568	7,792	8,424	749	5
24.3	616	9,103	9,945	889	5.5
26.1	664	10,460	11,536	1044	6

แบรนด์	THAIMUI
