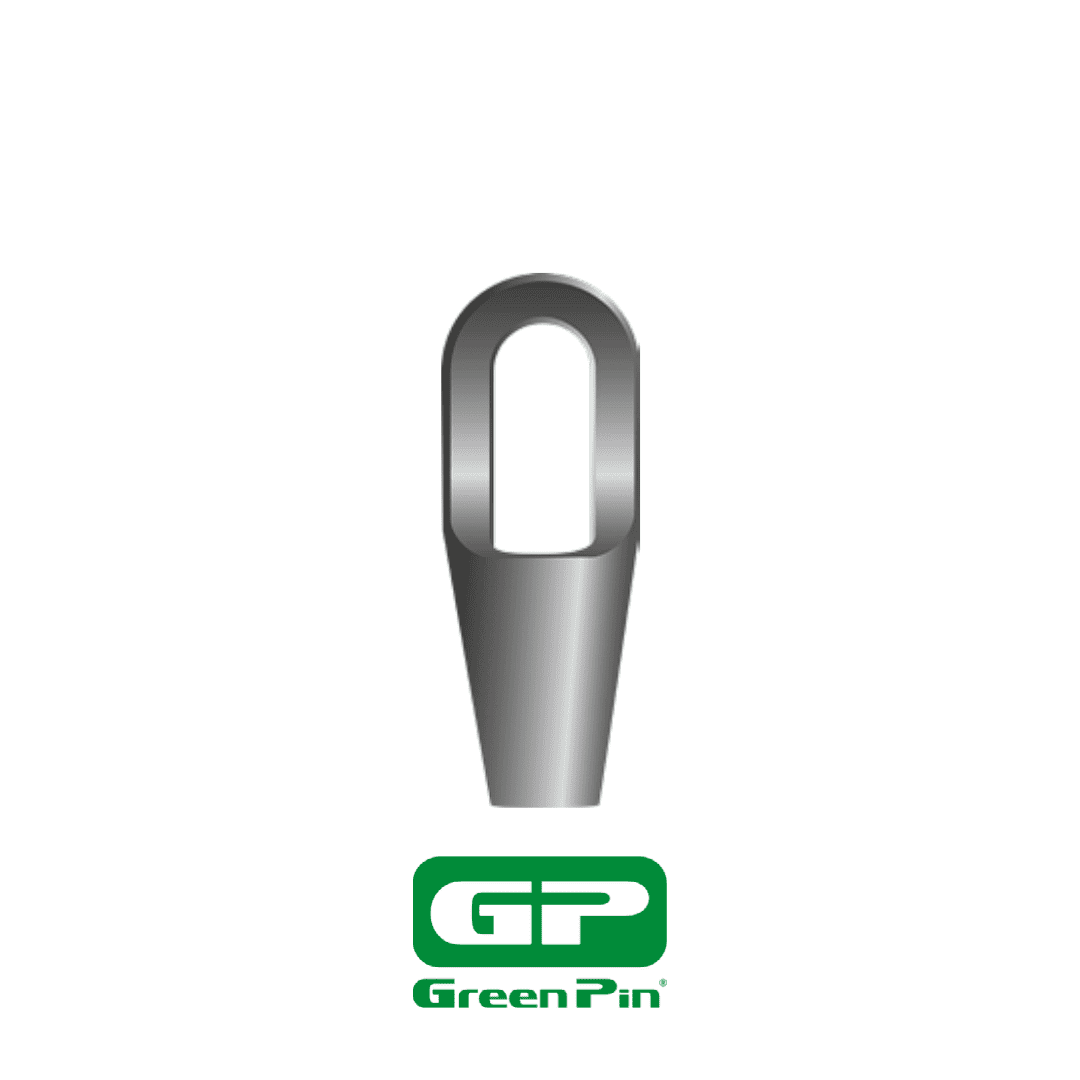

ซ็อกเกต ลวดสลิง Green Pin Closed Spelter Socket G-6411
รายละเอียด และ ขนาด
- Material: high tensile steel
- Finish: hot dipped galvanized
- Temperature Range: -20°C up to +200°C
Reference: Green Pin
Reference: Green Pin

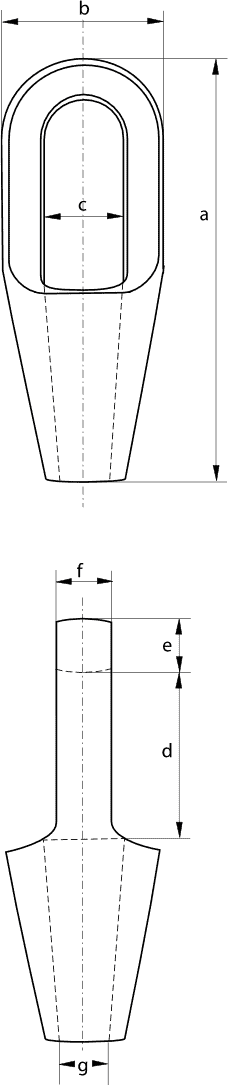

Number | Minimum Breaking Load | Wire Rope Diameter | Dimensions (mm) | Weight each | ||||||
---|---|---|---|---|---|---|---|---|---|---|
a | b | c | d | e | f | g | ||||
t | mm | mm | mm | mm | mm | mm | mm | mm | kg | |
296 | 8 | 6 - 7 | 101 | 37 | 22 | 40 | 11 | 13 | 9 | 0.3 |
297 | 12 | 8 - 10 | 119 | 43 | 25 | 48 | 14 | 17.5 | 12 | 0.5 |
298 | 20 | 11 - 13 | 140 | 52 | 30 | 58 | 18 | 23.5 | 15 | 0.75 |
299 | 25 | 14 - 16 | 162 | 68 | 37 | 66 | 21 | 26 | 17.5 | 1.5 |
200 | 40 | 18 - 19 | 194 | 76 | 42 | 78 | 27 | 32 | 21.5 | 2.4 |
201 | 55 | 20 - 22 | 224 | 92 | 47 | 90 | 33 | 38 | 24 | 3.6 |
204 | 75 | 23 - 26 | 253 | 104 | 57 | 103 | 36 | 44 | 28 | 5.8 |
207 | 90 | 27 - 30 | 282 | 114 | 63 | 116 | 39 | 51 | 32 | 7 |
212 | 125 | 31 - 36 | 312 | 127 | 70 | 130 | 43 | 57 | 38 | 10.5 |
215 | 150 | 37 - 39 | 358 | 136 | 79 | 155 | 51 | 63 | 41 | 13 |
217 | 170 | 40 - 42 | 390 | 146 | 83 | 171 | 54 | 70 | 44 | 17 |
219 | 225 | 43 - 48 | 443 | 171 | 93 | 198 | 55 | 76 | 51 | 26 |
222 | 280 | 49 _ 54 | 502 | 193 | 100 | 224 | 62 | 82 | 57 | 37.5 |
224 | 360 | 55 - 60 | 548 | 216 | 112 | 247 | 73 | 92 | 63 | 50 |
226 | 425 | 61 - 68 | 597 | 241 | 140 | 270 | 79 | 102 | 73 | 65 |
227 | 460 | 69 - 75 | 644 | 273 | 159 | 286 | 79 | 124 | 79 | 94 |
228 | 560 | 76 - 80 | 686 | 292 | 171 | 298 | 83 | 133 | 86 | 115 |
229 | 625 | 81 - 86 | 743 | 311 | 184 | 311 | 102 | 146 | 92 | 145 |
230 | 720 | 87 - 93 | 788 | 330 | 197 | 330 | 102 | 159 | 99 | 168 |
231 | 875 | 94 - 102 | 845 | 362 | 216 | 356 | 108 | 178 | 108 | 210 |
233 | 1200 | 108 - 115 | 1000 | 405 | 235 | 425 | 125 | 190 | 125 | 330 |
240 | 1300 | 120 - 130 | 1150 | 450 | 260 | 525 | 125 | 200 | 143 | 500 |
