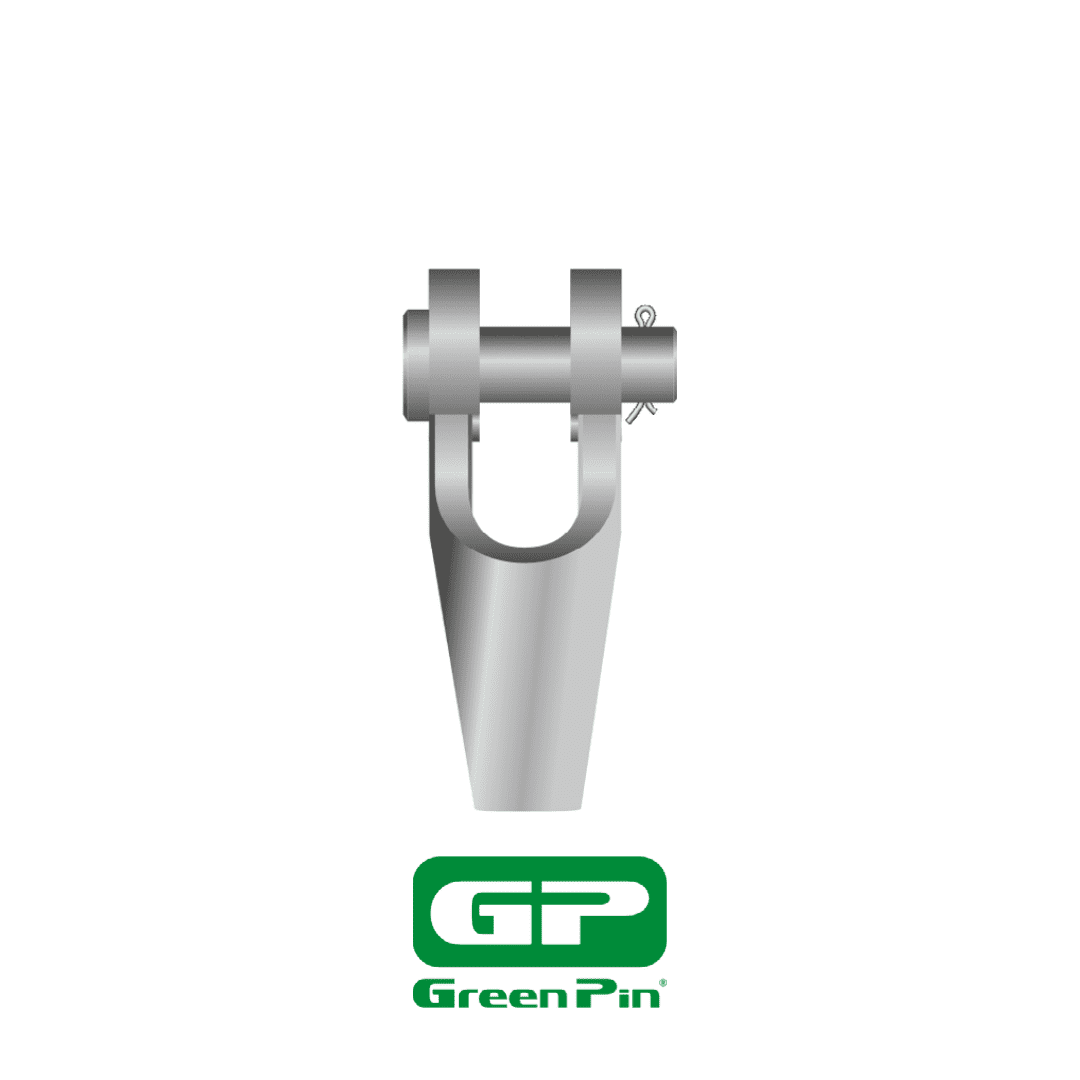

ซ็อกเกต ลวดสลิง Green Pin Open Spelter Socket CP G-6412
รายละเอียด และ ขนาด
Open spelter socket with cotter pin
- Material: high tensile steel
- Finish: hot dipped galvanized
- Temperature Range: -20°C up to +200°C
Reference: Green Pin

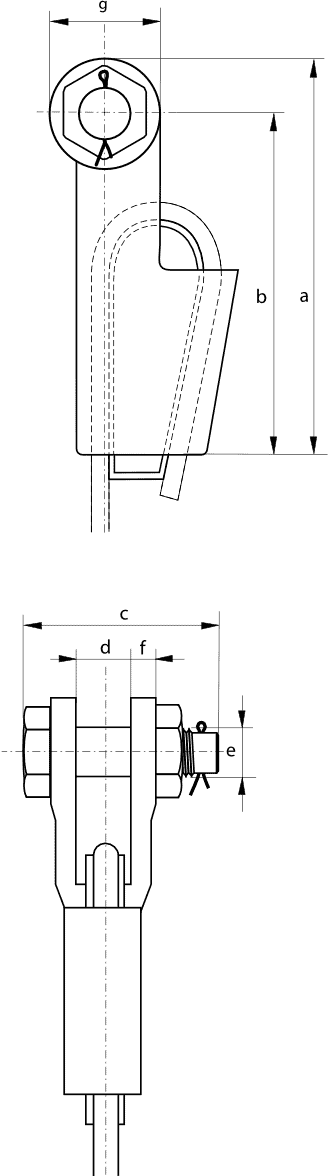

| Number | Minimum Breaking Load | Wire Rope Diameter | Dimensions (mm) | Weight each | |||||
|---|---|---|---|---|---|---|---|---|---|
| a | b | c | d | e | f | ||||
| t | mm | mm | mm | mm | mm | mm | mm | kg | |
| 196 | 8 | 6 - 7 | 109 | 51 | 19 | 16 | 33 | 9 | 0.4 |
| 197 | 12 | 8 - 10 | 124 | 62 | 21 | 21 | 34 | 12 | 0.7 |
| 198 | 20 | 11 - 13 | 143 | 66 | 26 | 25 | 37 | 15 | 1 |
| 199 | 25 | 14 - 16 | 172 | 82 | 33 | 30 | 49 | 18 | 1.8 |
| 100 | 40 | 18 - 19 | 205 | 95 | 38 | 35 | 58 | 21 | 3 |
| 104 | 55 | 20 - 22 | 235 | 110 | 44 | 41 | 68 | 24 | 4.6 |
| 108 | 75 | 23 - 26 | 275 | 130 | 51 | 51 | 75 | 28 | 8 |
| 111 | 90 | 27 - 30 | 306 | 144 | 57 | 57 | 85 | 32 | 11 |
| 115 | 125 | 31 - 36 | 338 | 155 | 63 | 64 | 95 | 38 | 16 |
| 118 | 150 | 37 - 39 | 394 | 178 | 76 | 70 | 127 | 41 | 22 |
| 120 | 170 | 40 - 42 | 418 | 187 | 76 | 76 | 127 | 44 | 27 |
| 125 | 225 | 43 - 48 | 468 | 213 | 89 | 89 | 134 | 51 | 41 |
| 128 | 280 | 49 - 54 | 552 | 240 | 101 | 95 | 181 | 57 | 64 |
| 130 | 360 | 55 - 60 | 598 | 270 | 113 | 108 | 196 | 63 | 88 |
| 132 | 425 | 61 - 68 | 654 | 303 | 127 | 121 | 213 | 73 | 125 |
| 135 | 460 | 69 - 75 | 696 | 349 | 133 | 127 | 216 | 79 | 155 |
| 138 | 560 | 76 - 80 | 737 | 371 | 146 | 133 | 220 | 86 | 187 |
| 140 | 625 | 81 - 86 | 788 | 391 | 159 | 140 | 228 | 92 | 230 |
| 142 | 720 | 87 - 93 | 852 | 411 | 171 | 152 | 242 | 99 | 265 |
| 144 | 875 | 94 - 102 | 914 | 447 | 191 | 178 | 254 | 108 | 400 |
| 146 | 1200 | 108 - 115 | 1160 | 489 | 206 | 193 | 369 | 125 | 660 |
