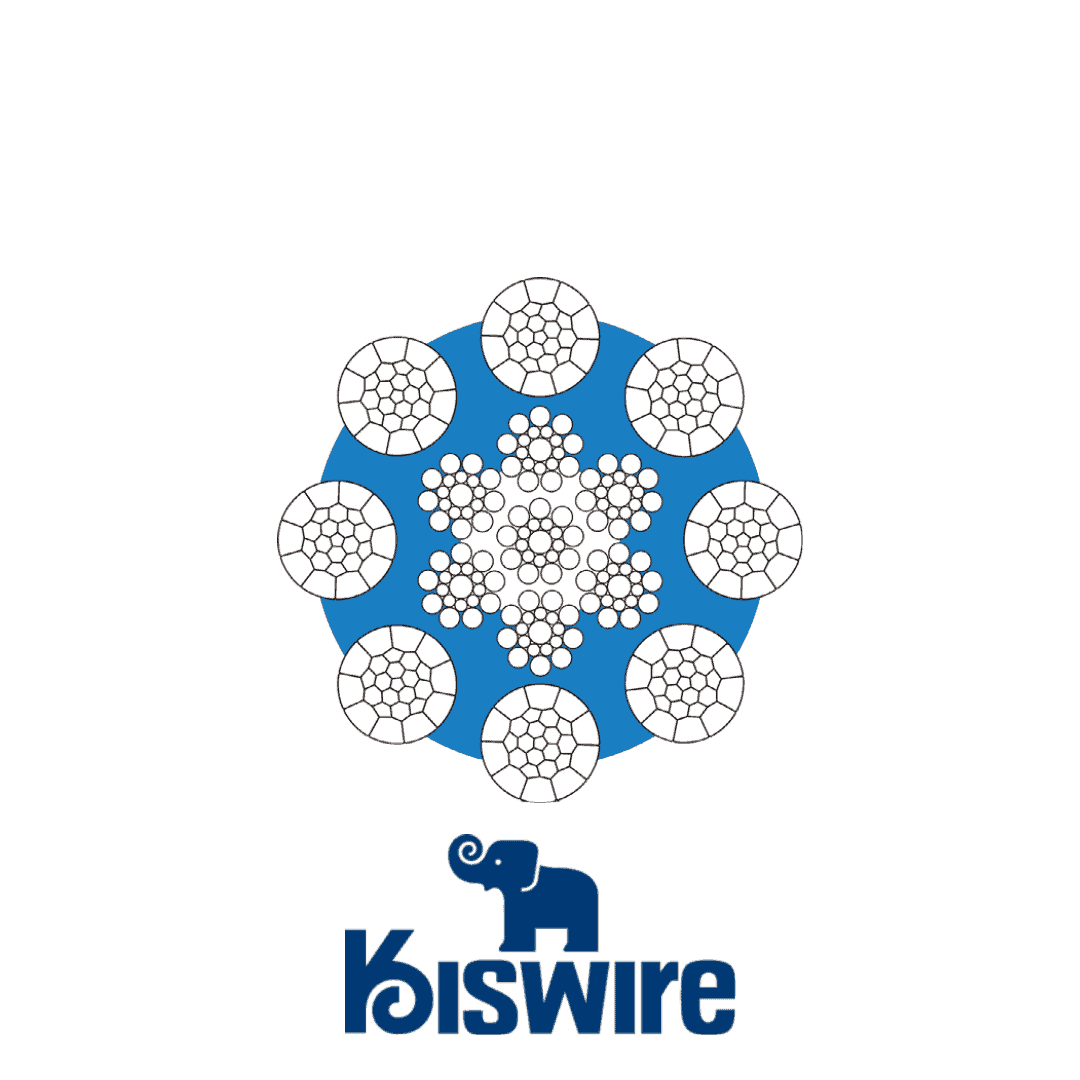

ลวดสลิง Kiswire Hyfil K8

Name: ลวดสลิง Kiswire Hyfil K8 - ไทยมุ้ย THAIMUI
Brand: Kiswire
Price: 100.00 THB
Availability: InStock

thaimui_admin

3 years ago

ลวดสลิง Kiswire Hyfil K8

ลวดสลิงไส้เหล็ก
ลวดสลิงสำหรับเครน (Crane)
ลวดสลิงสำหรับรถเครน (Mobile Crane)
ลวดสลิงสำหรับเครนโรงงาน/อุตสาหกรรม (Overhead Crane)
ลวดสลิงสำหรับเครนนอกชายฝั่ง (Offshore Pedestal)
ลวดสลิงสำหรับเครนหน้าท่า (Dockside Crane)

Features

Non-Rotation Resistant Rope
Should not be used with a Swivel
Zinc Coated/Alumar Coated/Bright
Compacted
Steel Plastic Combination


Rope Diameter		Diameter tolerance		Outer wire Diameter	Weight		Min. Breaking Force (Metric unit.)						Min. Breaking Force (Imperial unit.)
Rope Diameter		min.	max.	Outer wire Diameter	Weight		1770 N/mm2		1960 N/mm2		2160 N/mm2		1770 N/mm2		1960 N/mm2		2160 N/mm2
mm	inch	mm	mm	mm	kg/m	lb/ft	kN	t(M)	kN	t(M)	kN	t(M)	lbf	t(S)	lbf	t(S)	lbf	t(S)
8		8.16	8.32	0.5	0.288	0.194	52.1	5.31	57.7	5.88	60.6	6.18	11,695	5.86	12,953	6.49	13,604	6.81
9		9.18	9.36	0.57	0.364	0.245	66	6.73	73	7.44	76.7	7.82	14,816	7.42	16,387	8.21	17,218	8.62
10		10.2	10.4	0.63	0.45	0.302	81.5	8.31	90.1	9.19	94.7	9.66	18,295	9.16	20,226	10.13	21,258	10.64
11		11.22	11.44	0.69	0.544	0.366	98.6	10.05	109.1	11.13	114.6	11.69	22,134	11.08	24,491	12.26	25,726	12.88
12		12.24	12.48	0.75	0.648	0.435	117.3	11.96	129.8	13.24	136.3	13.9	26,332	13.19	29,138	14.59	30,597	15.32
12.7	1/2	12.95	13.21	0.8	0.726	0.488	131.4	13.4	145.4	14.83	152.7	15.57	29,497	14.77	32,640	16.34	34,278	17.16
13		13.26	13.52	0.82	0.76	0.511	137.7	14.04	152.3	15.53	160	16.32	30,911	15.48	34,188	17.12	35,917	17.98
14		14.28	14.56	0.88	0.882	0.593	159.7	16.28	176.7	18.02	185.6	18.93	35,850	17.95	39,666	19.86	41,664	20.86
14.3	9/16	14.59	14.87	0.9	0.92	0.618	166.6	16.99	184.3	18.79	193.6	19.74	37,399	18.73	41,372	20.72	43,460	21.76
15		15.3	15.6	0.94	1.012	0.68	183.3	18.69	202.8	20.68	213	21.72	41,147	20.6	45,525	22.8	47,814	23.94
15.9	5/8	16.22	16.54	1	1.137	0.764	206	21.01	227.9	23.24	239.4	24.41	46,243	23.16	51,159	25.62	53,741	26.91
16		16.32	16.64	1.01	1.152	0.774	208.6	21.27	230.7	23.52	242.4	24.72	46,827	23.45	51,788	25.93	54,414	27.25
17		17.34	17.68	1.07	1.3	0.874	235.5	24.01	260.5	26.56	273.6	27.9	52,865	26.47	58,477	29.28	61,418	30.75
18		18.36	18.72	1.13	1.457	0.979	264	26.92	292	29.78	306.8	31.28	59,263	29.67	65,548	32.82	68,871	34.49
19		19.38	19.76	1.19	1.624	1.091	294.2	30	325.4	33.18	341.8	34.85	66,042	33.07	73,046	36.58	76,728	38.42
19.1	3/4	19.48	19.86	1.2	1.641	1.103	297.3	30.32	328.8	33.53	345.4	35.22	66,738	33.42	73,809	36.96	77,536	38.82
20		20.4	20.8	1.26	1.799	1.209	325.9	33.23	360.5	36.76	378.7	38.62	73,158	36.63	80,925	40.52	85,011	42.57
21		21.42	21.84	1.32	1.984	1.333	359.3	36.64	397.5	40.53	417.5	42.57	80,656	40.39	89,231	44.68	93,721	46.93
22		22.44	22.88	1.38	2.177	1.463	394.4	40.22	436.2	44.48	458.3	46.73	88,535	44.33	97,919	49.03	102,880	51.51
22.2	7/8	22.64	23.09	1.4	2.217	1.49	401.6	40.95	444.2	45.3	466.6	47.58	90,152	45.14	99,714	49.93	104,743	52.45
23		23.46	23.92	1.45	2.38	1.599	431	43.95	476.8	48.62	500.9	51.08	96,751	48.45	107,032	53.59	112,442	56.3
24		24.48	24.96	1.51	2.591	1.741	469.3	47.86	519.1	52.93	545.4	55.62	105,349	52.75	116,528	58.35	122,432	61.31
25		25.5	26	1.57	2.812	1.89	509.3	51.93	563.3	57.44	591.8	60.35	114,328	57.25	126,450	63.32	132,848	66.52
25.4	1	25.91	26.42	1.6	2.902	1.95	525.7	53.61	581.5	59.3	610.8	62.28	118,010	59.09	130,536	65.36	137,113	68.66
26		26.52	27.04	1.63	3.041	2.043	550.8	56.17	609.3	62.13	640	65.26	123,644	61.91	136,776	68.49	143,668	71.94
27		27.54	28.08	1.7	3.279	2.203	594	60.57	657	67	690.2	70.38	133,342	66.77	147,484	73.85	154,937	77.58
28		28.56	29.12	1.76	3.527	2.37	638.8	65.14	706.6	72.05	742.3	75.69	143,398	71.8	158,618	79.42	166,632	83.44
28.6	1 1/8	29.17	29.74	1.8	3.68	2.473	666.5	67.96	737.2	75.17	774.5	78.98	149,617	74.92	165,487	82.86	173,860	87.06
29		29.58	30.16	1.82	3.783	2.542	685.3	69.88	758	77.29	796.3	81.2	153,837	77.03	170,157	85.2	178,754	89.51
30		30.6	31.2	1.89	4.049	2.721	733.4	74.79	811.1	82.71	852.1	86.89	164,634	82.44	182,076	91.17	191,280	95.78
31		31.62	32.24	1.95	4.323	2.905	783.1	79.85	866.1	88.32	909.9	92.78	175,791	88.02	194,423	97.35	204,255	102.3
31.8	1 1/4	32.44	33.07	2	4.549	3.057	824	84.02	911.4	92.94	957.5	97.64	184,972	92.62	204,592	102.4	214,940	107.6
32		32.64	33.28	2.01	4.606	3.095	834.4	85.09	922.9	94.11	969.5	98.86	187,307	93.79	207,173	103.7	217,634	109
33		33.66	34.32	2.07	4.899	3.292	887.4	90.49	981.5	100.1	1031	105.1	199,204	99.75	220,328	110.3	231,440	115.9
34		34.68	35.36	2.14	5.2	3.494	941.9	96.05	1042	106.3	1095	111.7	211,439	105.9	233,909	117.1	245,807	123.1
34.9	1 3/8	35.6	36.3	2.19	5.479	3.682	992.5	101.2	1098	112	1153	117.6	222,797	111.6	246,480	123.4	258,826	129.6
35		35.7	36.4	2.2	5.511	3.703	998.2	101.8	1104	112.6	1160	118.3	224,077	112.2	247,827	124.1	260,398	130.4
36		36.72	37.44	2.26	5.83	3.918	1056	107.7	1168	119.1	1227	125.1	237,052	118.7	262,194	131.3	275,438	137.9
38		38.76	39.52	2.39	6.496	4.365	1177	120	1301	132.7	1367	139.4	264,214	132.3	292,050	146.2	306,865	153.7
38.1	1 1/2	38.86	39.62	2.39	6.53	4.388	1183	120.6	1308	133.4	1374	140.1	265,561	133	293,621	147	308,437	154.4
40		40.8	41.6	2.51	7.198	4.837	1304	133	1442	147	1515	154.5	292,723	146.6	323,701	162.1	340,089	170.3
41.3	1 5/8	42.13	42.95	2.6	7.673	5.156	1390	141.7	1537	156.7	1615	164.7	312,028	156.2	345,027	172.8	362,537	181.5
42		42.84	43.68	2.64	7.935	5.332	1437	146.5	1590	162.1	1670	170.3	322,579	161.5	356,925	178.7	374,883	187.7
44		44.88	45.76	2.38	8.709	5.852	1578	160.9	1745	177.9	1833	186.9	354,231	177.4	391,719	196.1	411,473	206
44.5	1 3/4	45.39	46.28	2.4	8.908	5.986	1614	164.6	1785	182	1875	191.2	362,312	181.4	400,698	200.6	420,902	210.8
45		45.9	46.8	2.43	9.109	6.121	1650	168.3	1825	186.1	1917	195.5	370,393	185.5	409,678	205.1	430,330	215.5
46		46.92	47.84	2.48	9.519	6.396	1724	175.8	1907	194.5	2003	204.2	387,005	193.8	428,085	214.4	449,635	225.1
47.6	1 7/8	48.55	49.5	2.57	10.19	6.849	1846	188.2	2042	208.2	2145	218.7	414,392	207.5	458,390	229.5	481,512	241.1
48		48.96	49.92	2.59	10.36	6.964	1877	191.4	2077	211.8	2181	222.4	421,351	211	466,247	233.5	489,593	245.2
50		51	52	2.35	11.25	7.557	2037	207.7	2253	229.7	2367	241.4	457,268	229	505,755	253.2	531,346	266.1
50.8	2	51.82	52.83	2.39	11.61	7.801	2103	214.4	2326	237.2	2443	249.1	472,083	236.4	522,143	261.5	548,407	274.6
52		53.04	54.08	2.45	12.16	8.174	2203	224.6	2437	248.5	2560	261	494,531	247.6	547,060	273.9	574,671	287.8
54	2 1/8	55.08	56.16	2.54	13.12	8.814	2376	242.3	2628	268	2761	281.5	533,367	267.1	589,936	295.4	619,792	310.3
56		57.12	58.24	2.64	14.11	9.479	2555	260.5	2826	288.2	-	-	573,549	287.2	634,383	317.7	-	-
57.2	2 1/4	58.34	59.49	2.69	14.72	9.89	2666	271.9	2949	300.7	-	-	598,466	299.7	661,994	331.5	-	-
58		59.16	60.32	2.73	15.13	10.17	2741	279.5	3032	309.2	-	-	615,302	308.1	680,626	340.8	-	-
60		61.2	62.4	2.82	16.19	10.88	2933	299.1	3245	330.9	-	-	658,402	329.7	728,441	364.8	-	-
