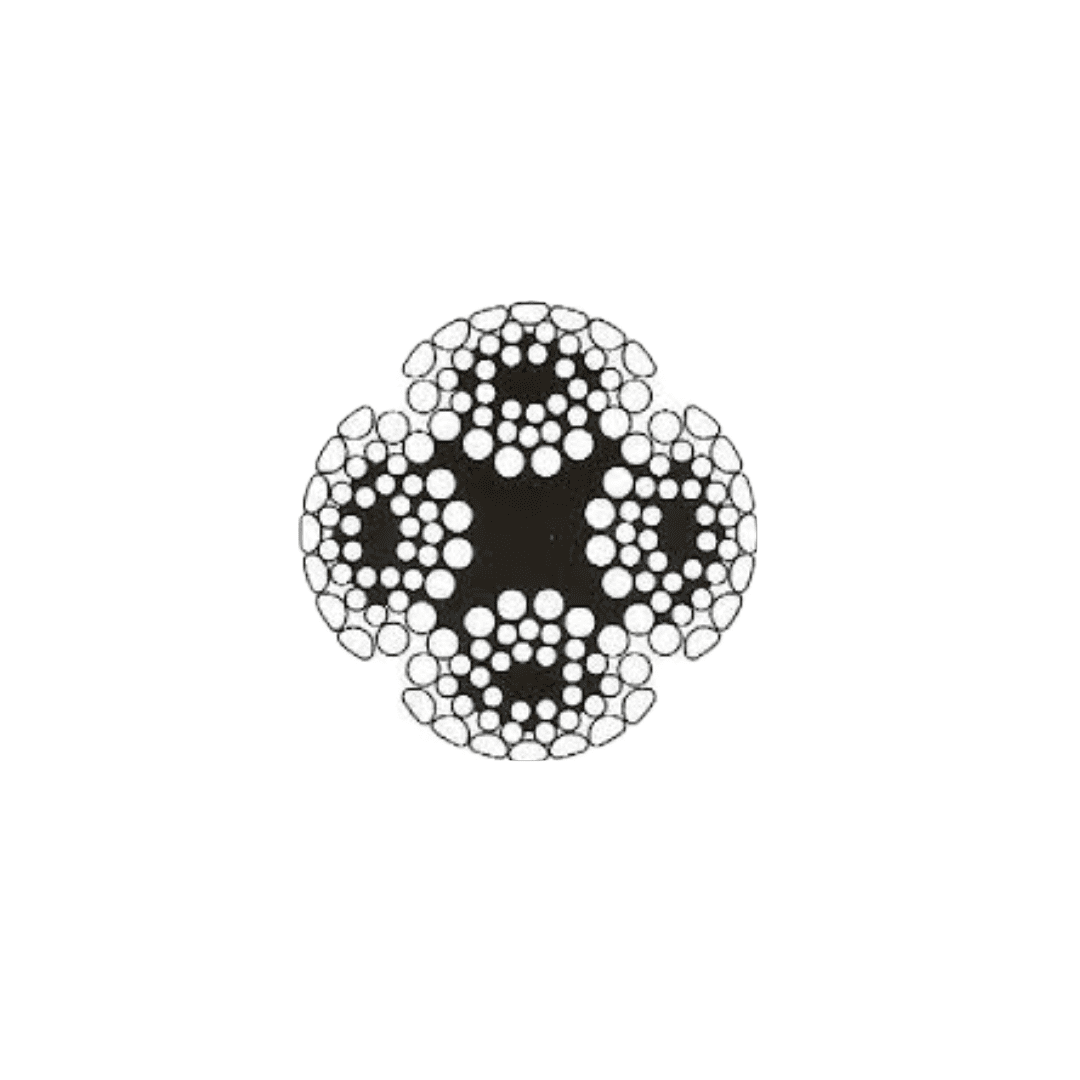

ลวดสลิง 4×39 Mono Track

ลวดสลิง 4×39 Mono Track

รายละเอียด และ ขนาดของลวดสลิง
– ลวดสลิงสำหรับเครน (Crane)
– ลวดสลิงสำหรับรถเครน (Mobile Crane)
– ลวดสลิงสำหรับรอก (Hoist)

Features

1. High Rotation Resistant
   Does match in multiple parts hoisting mechanism system.
2. Increased Breaking Strength
   The Breaking Strength of Mono Track Rope is higher then that of 6-strand ropes of equipment diameter:
   hence the margin of safety factor stays higher than other types of roped.
3. High Flexibility
   With fiber cores in each strand and fiber rope core, the unit-mass of Mono Track Rope would be reduced: hence it becomes more flexible to handle at operation.
4. Increases Abrasion Resistance
   Being fished through a special process, Mono Track Rope withstands anti-abrasion and fits grooves of drum or sheave with low fraction. With the surface of strand are being flattened to have wider contact area between sheave and rope. Mono Track Rope features and intense resistance against abrasion, because it has very little local abrasion owing to the small pressure applied to individual wires.
5. High Resistance to Fatigue
   The simplified construction of Mono Track Rope guarantees the stability of section against crushing loads and enjoys equivalent service life to conventional construction.
