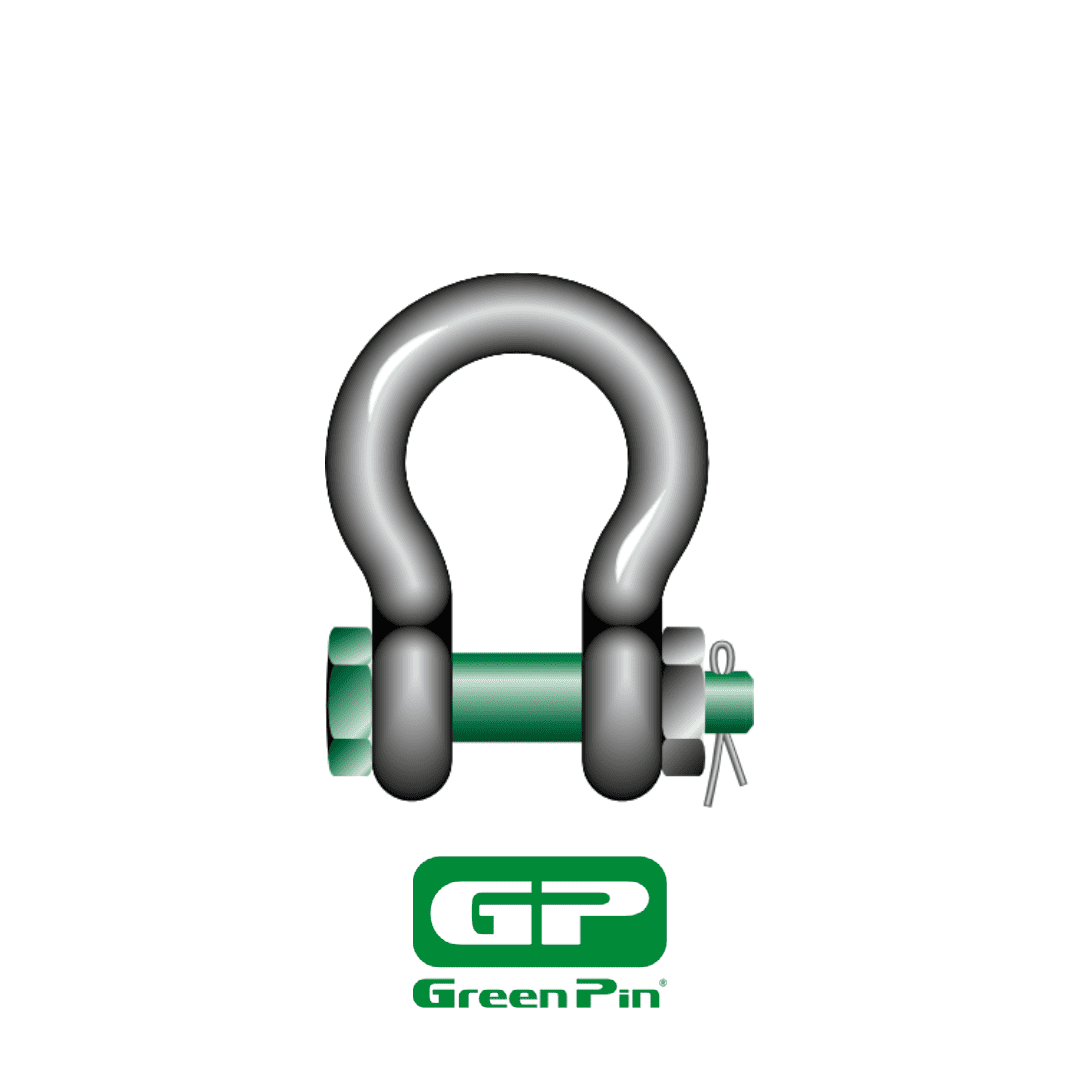

สเก็น โอเมก้า Green Pin Grade 8 Bow Shackle with Safety Bolt G-5263
รายละเอียด และ ขนาด
- Material: bow and pin alloy steel, grade 8, quenched and tempered
- Safety Factor: MBL equals 5 x WLL
- Standard: ASME B30.26 and meets performance requirements of US Fed. Spec. RR-C-271 Type IVA Class 3, grade B
- Finish: hot dipped galvanized (175 ton shackle is painted)
- Temperature Range: -20°C up to +200°C
Reference: Green Pin
| Working Load Limit | Diameter body | Diameter pin | Diameter eye | Width eye | Width inside | Length inside | Width bow | Length | Length bolt | Width | Thickness nut | Weight each |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| a | b | c | d | e | f | g | h | i | j | k | ||
| t | mm | mm | mm | mm | mm | mm | mm | mm | mm | mm | mm | kg |
| 3.3 | 13.5 | 16 | 34 | 13 | 22 | 51 | 32 | 89 | 82 | 58 | 13 | 0.4 |
| 5 | 16 | 19 | 40 | 16 | 27 | 64 | 43 | 110 | 98 | 75 | 17 | 0.73 |
| 7 | 19 | 22 | 46 | 19 | 31 | 76 | 51 | 129 | 114 | 89 | 19 | 1.19 |
| 9.5 | 22 | 25 | 52 | 22 | 36 | 83 | 58 | 144 | 130 | 102 | 22 | 1.73 |
| 125 | 25 | 28 | 59 | 25 | 43 | 95 | 68 | 164 | 150 | 118 | 25 | 2.56 |
| 15 | 28 | 32 | 66 | 28 | 47 | 108 | 75 | 185 | 166 | 131 | 27 | 3.6 |
| 18 | 32 | 35 | 72 | 32 | 51 | 115 | 83 | 201 | 178 | 147 | 30 | 4.95 |
| 21 | 35 | 38 | 80 | 35 | 57 | 133 | 92 | 227 | 197 | 162 | 33 | 6.62 |
| 30 | 38 | 42 | 88 | 38 | 60 | 146 | 99 | 249 | 217 | 175 | 34 | 8.11 |
| 40 | 45 | 50 | 103 | 45 | 74 | 178 | 126 | 300 | 260 | 216 | 40 | 15 |
| 55 | 57 | 57 | 117 | 57 | 83 | 197 | 138 | 341 | 303 | 252 | 46 | 23 |
| 85 | 70 | 70 | 143 | 70 | 105 | 260 | 180 | 437 | 363 | 320 | 56 | 44 |
| 120 | 83 | 83 | 162 | 83 | 127 | 329 | 190 | 535 | 425 | 356 | 66 | 72 |
| 15** | 95 | 95 | 208 | 95 | 147 | 400 | 238 | 647 | 524 | 428 | 50 | 112 |
| 175** | 105 | 108 | 238 | 105 | 169 | 410 | 275 | 688 | 567 | 485 | 50 | 160 |
