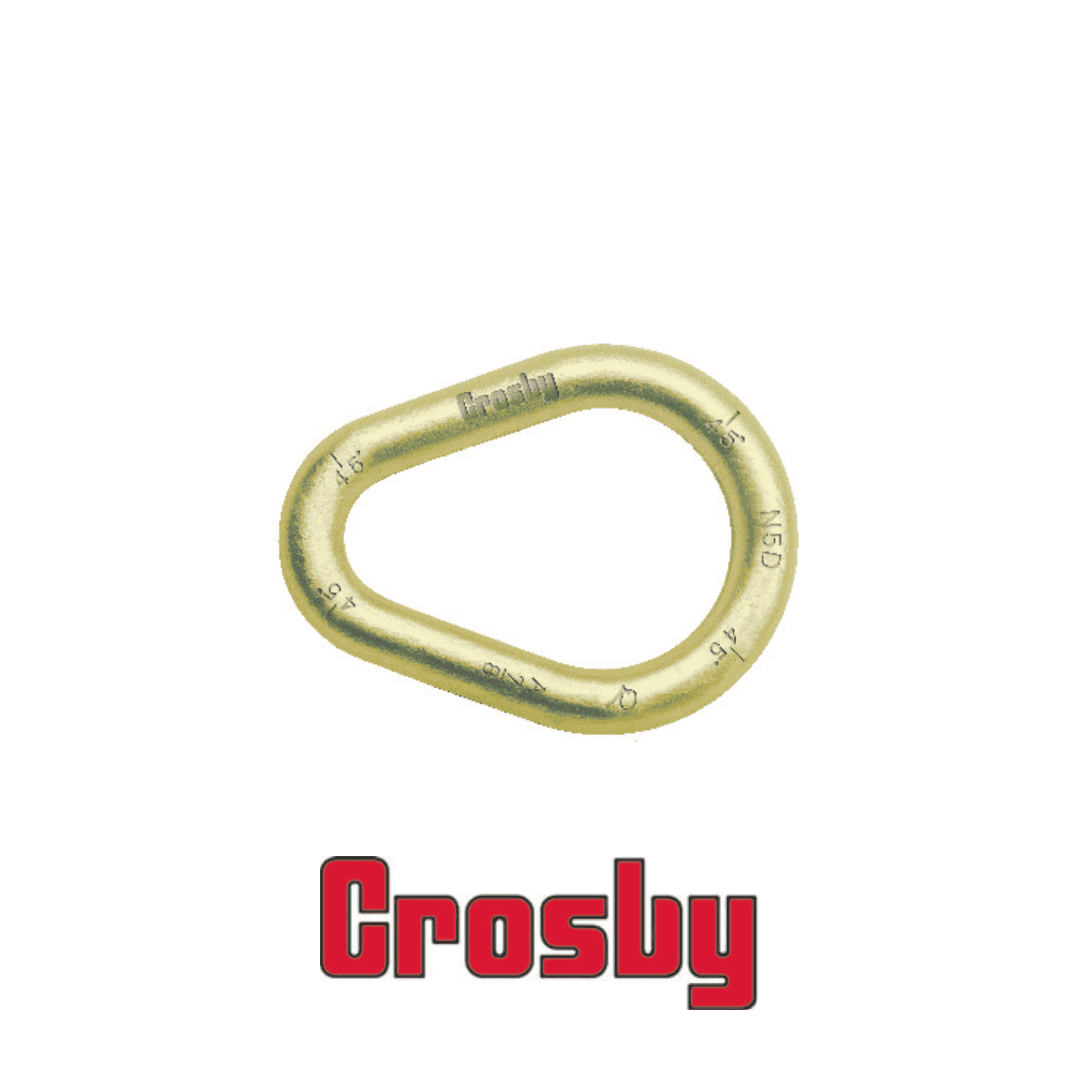

ห่วงเหล็ก มาสเตอร์ลิงค์ Crosby Alloy Pear Shaped Links A-341
รายละเอียด และ ขนาด
- Alloy Steel – Quenched and Tempered
- Individually Proof Tested at 2 times Working Load Limit with certification.
- Proof Test certification shipped with each link.
- Sizes 13mm, 16mm, 19mm, 22mm, 25mm, 32mm and 35mm are forged.
Reference: Crosby

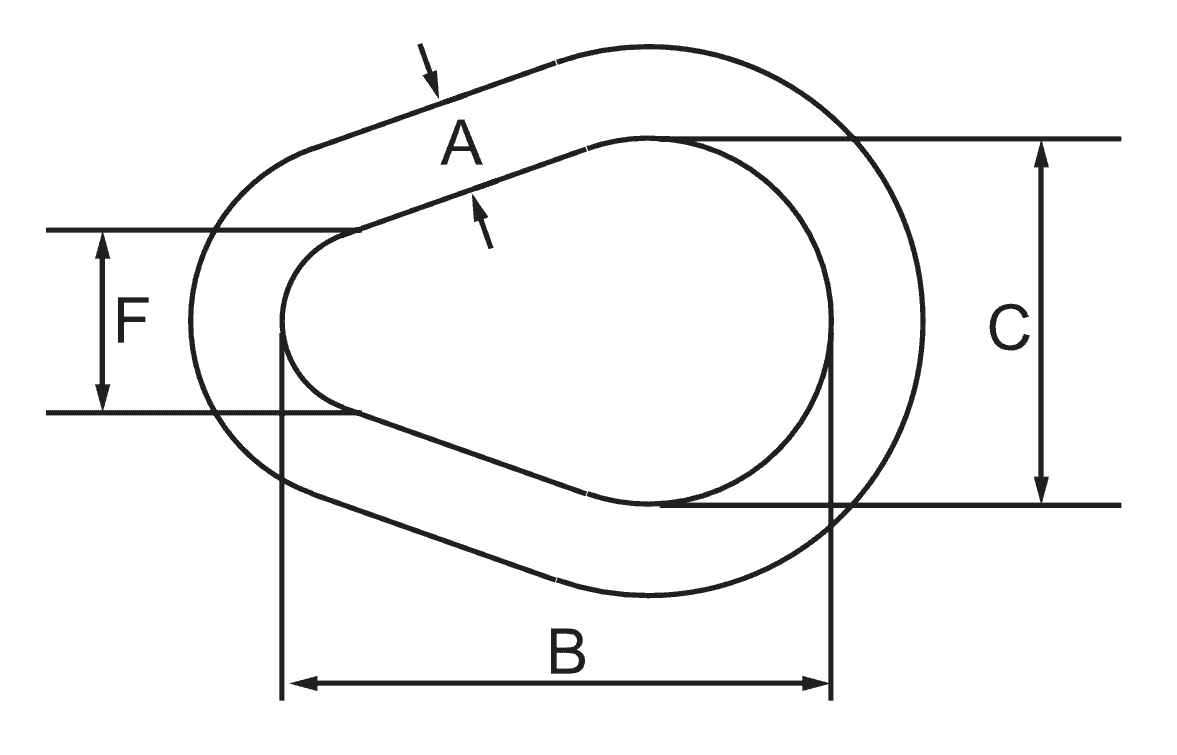

| Stock Size (A) | A-341 Stock No. | Working Load Limit | Weight Each | Dimension (mm) | |||
|---|---|---|---|---|---|---|---|
| B | C | F | |||||
| mm | t | lb | kg | mm | mm | mm | |
| 13 | 1013575 | 3.15 | 7000 | 0.25 | 76.2 | 50.8 | 25.4 |
| 16 | 1013584 | 4.09 | 9000 | 0.50 | 95.3 | 63.5 | 31.8 |
| 19 | 1013595 | 5.59 | 12300 | 0.80 | 114 | 76.2 | 38.1 |
| 22 | 1013604 | 6.81 | 15000 | 1.28 | 133 | 88.9 | 44.5 |
| 25 | 1013613 | 11.0 | 24360 | 1.91 | 152 | 102 | 51.0 |
| 28 | 1013622 | 13.9 | 30600 | 2.83 | 171 | 114 | 57.0 |
| 32 | 1013631 | 16.4 | 36000 | 3.74 | 191 | 127 | 63.5 |
| 35 | 1013640 | 19.5 | 43000 | 5.10 | 210 | 140 | 70.0 |
| tt 38 | 1013649 | 24.7 | 54300 | 6.46 | 229 | 152 | 76.0 |
| tt 42 | 1013658 | 28.4 | 62600 | 8.39 | 248 | 165 | 82.5 |
| tt 44 | 1013667 | 38.6 | 84900 | 10.2 | 267 | 178 | 89.0 |
| tt 48 | 1013676 | 43.5 | 95800 | 13.2 | 286 | 191 | 95.5 |
| tt 51 | 1013685 | 46.6 | 102600 | 15.4 | 305 | 203 | 102 |
| tt 57 | 1013694 | 65.0 | 143100 | 21.8 | 343 | 229 | 114 |
| tt 64 | 1013703 | 66.9 | 147300 | 29.9 | 381 | 254 | 127 |
| tt 70 | 1013712 | 98.6 | 216900 | 39.9 | 419 | 279 | 140 |
| tt 76 | 1013721 | 103 | 228000 | 52 | 457 | 305 | 152 |
| tt 83 | 1013730 | 119 | 262200 | 66 | 495 | 330 | 165 |
| tt 89 | 1013739 | 126 | 279000 | 82 | 533 | 356 | 178 |
| tt 102 | 1013748 | 169 | 373000 | 123 | 610 | 406 | 203 |
