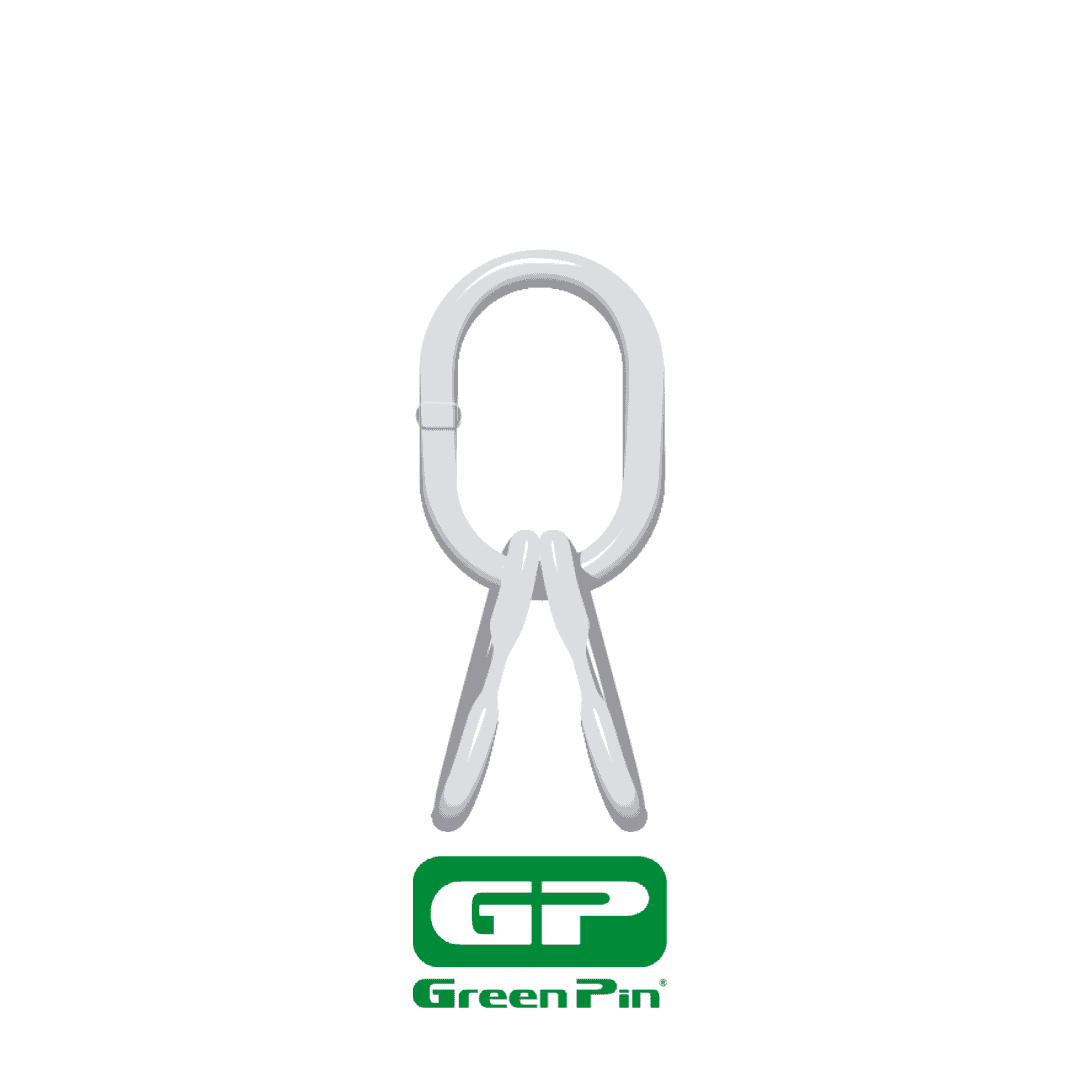

ห่วงเหล็ก มาสเตอร์ลิงค์ Green Pin Grade 8 Master Link Assembly EN1677-4
รายละเอียด และ ขนาด
- Material: grade 8, alloy steel
- factor: MBL equals 4 x WLL
- Standard: generally to EN 1677-4
- Finish: painted yellow, red or white
- Temperature range: -40°C up to +200°C
- Note: from 60 t without flat part
Reference: Green Pin

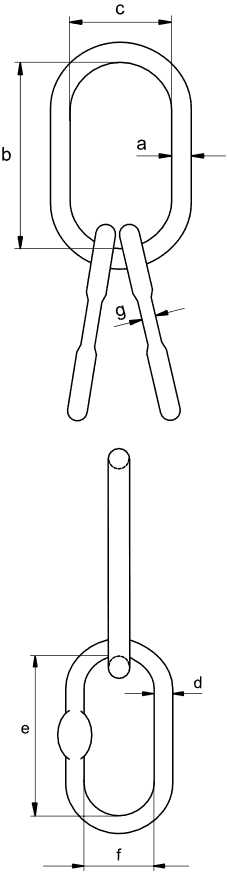

| Diameter | Diameter Chain 3/4 legs | Working Load Limit | Length inside | Width inside | Diameter | Length inside | Width inside | Thickness | Weight Each | ||
|---|---|---|---|---|---|---|---|---|---|---|---|
| a | ß <= 45° | ß <= 60° | b | c | d | e | f | g | |||
| mm | mm | mm | t | mm | mm | mm | mm | mm | mm | kg | |
| 16 | 6 | 6 - 7 | 2.5 | 120 | 70 | 13 | 100 | 60 | 7 | 1.16 | 1.4 |
| 18 | 6 - 7 | 8 | 3.5 | 135 | 75 | 16 | 100 | 60 | 6 | 1.75 | 1.5 |
| 22 | 8 | 10 | 6.5 | 150 | 90 | 18 | 120 | 70 | 9 | 2.8 | 1.6 |
| 25 | 10 | 13 | 8.5 | 170 | 95 | 20 | 120 | 70 | 11 | 3.82 | 4.1 |
| 28 | - | - | 10 | 200 | 120 | 20 | 120 | 70 | 11 | 4.7 | 6 |
| 30 | 13 | 16 | 13 | 200 | 120 | 22 | 135 | 75 | 14 | 5.85 | 7 |
| 36 | 16 | 18-19 | 17 | 250 | 150 | 25 | 135 | 75 | 14 | 9.35 | 11.8 |
| 38 | - | 20 | 20 | 250 | 150 | 28 | 170 | 95 | 17 | 11.75 | 12.4 |
| 45 | 18-20 | 22 | 27 | 280 | 170 | 33 | 200 | 120 | 17 | 18.5 | 21 |
| 45 | - | - | 30 | 300 | 200 | 36 | 200 | 120 | 21 | 22 | 23.6 |
| 50 | 22 | 26 | 40 | 300 | 200 | 38 | 150 | 90 | 21 | 24 | 23.8 |
| 55 | 26 | 32 | 50 | 300 | 200 | 38 | 150 | 90 | 23 | 27 | 41 |
| 58 | - | - | 60 | 350 | 200 | 42 | 150 | 90 | - | 34 | 62 |
| 70 | 32 | - | 80 | 400 | 250 | 55 | 300 | 150 | - | 72 | 75 |
| 80 | - | - | 100 | 400 | 250 | 58 | 300 | 150 | - | 92 | 104 |
