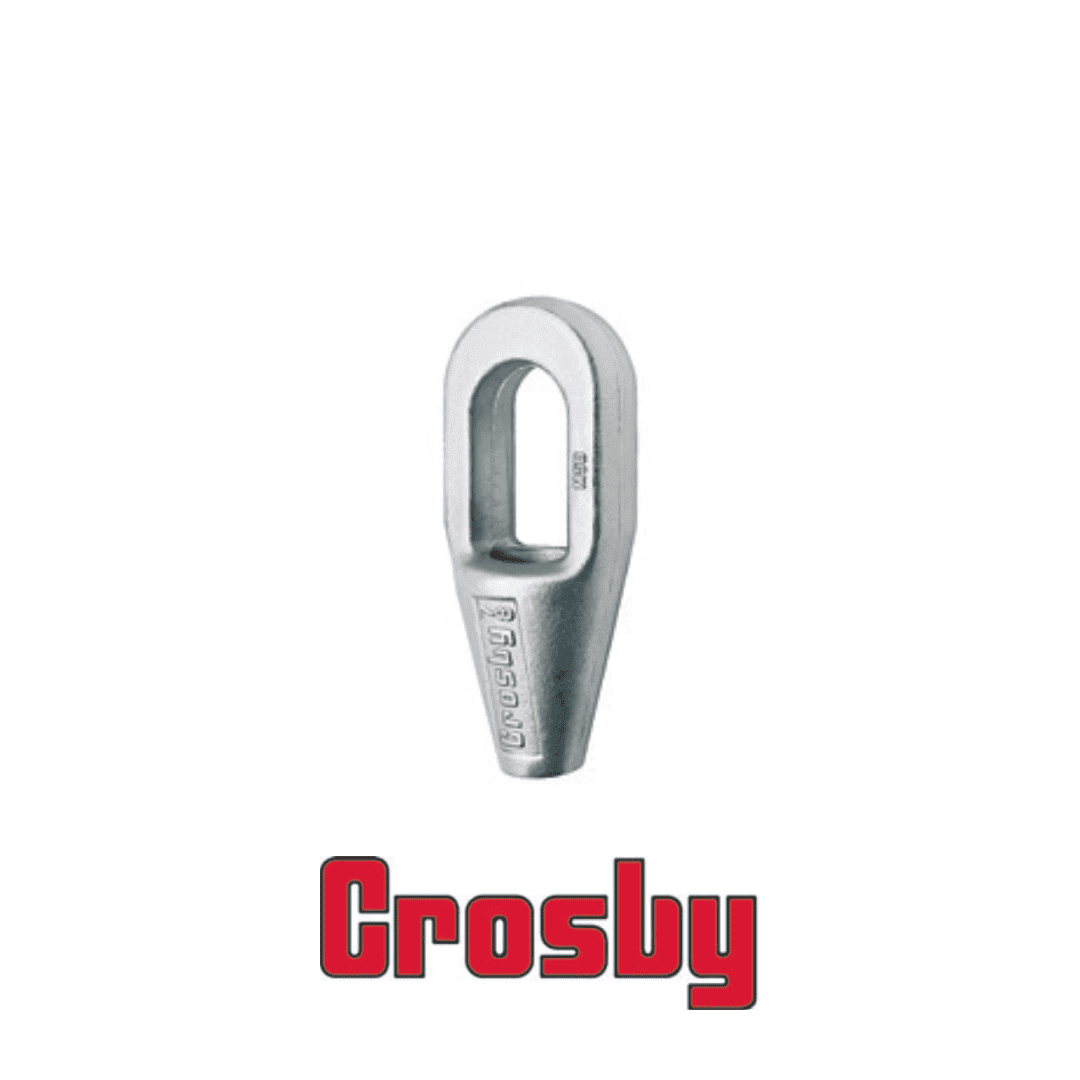

ซ็อกเก็ต ลวดสลิง Crosby Closed Spelter Sockets G-417
รายละเอียด และ ขนาด
- Forged Steel Sockets through 38mm, cast alloy steel 40mm through 102mm.
- Spelter socket terminations have an efficiency rating of 100%, based on the catalog strength of wire rope.
- Ratings are based on recommended use with 6 x 7, 6 x 19, or 6 x 37, IPS or XIP (EIP), XXIP (EEIP), RRL, FC, or IWRC wire rope.
- Strand constructed with minimal number of wires (e.g. 1 x 7) requires special consideration that socket basket length be five
(5) times the strand diameter or fifty (50) times the wire diamete , whichever is the greater.
Reference: Crosby G-417

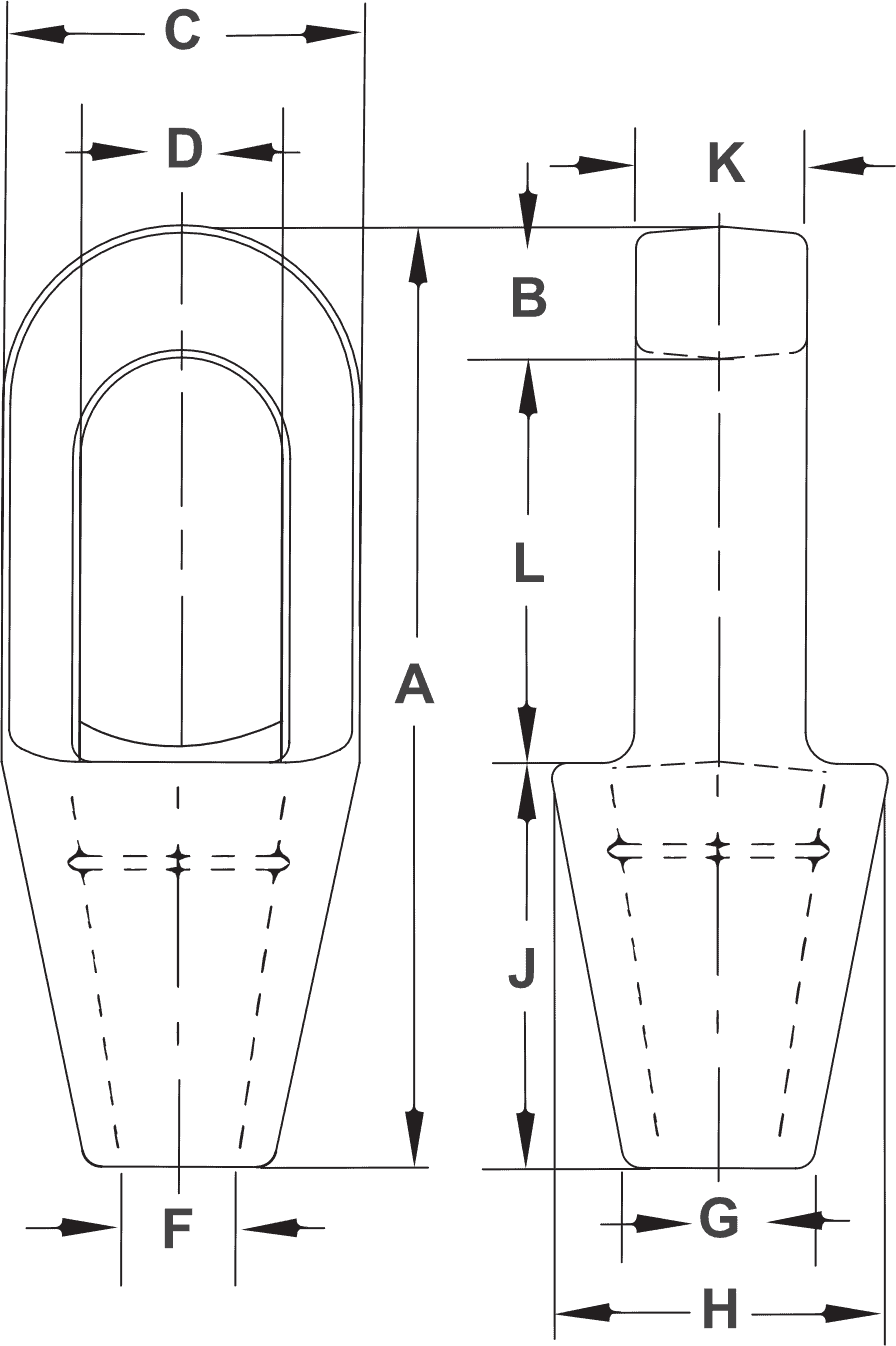

| Wire Rope Size | Structural Strand Dia. | Ultimate Load | Wedge Only Stock No. | Weight Each | Dimensions | |||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| G-417 Galv. | S-417 S.C. | A | B | C | D* | F | G | H | J | K | L | |||||
| mm | inch | mm | t | kg | mm | mm | mm | mm | mm | mm | mm | mm | mm | mm | ||
| 8-10 | 5/16 - 3/8 | - | 12 | 1039913 | 1039922 | 0.34 | 125 | 15.8 | 42.9 | 24.6 | 12.7 | 20.6 | 42.9 | 57.2 | 17.5 | 52.3 |
| 11-13 | 7/16 - 1/2 | - | 20 | 1039931 | 1039940 | 0.68 | 140 | 17.5 | 51 | 29.5 | 14.2 | 23.9 | 51 | 63.5 | 22.4 | 58.7 |
| 14-16 | 9/16 - 5/8 | 12-13 | 30.8 | 1039959 | 1039968 | 1.13 | 162 | 20.6 | 67 | 35.8 | 17.5 | 30.2 | 67 | 76.2 | 25.4 | 65 |
| 18 | 3/4 | 14-16 | 43.5 | 1039977 | 1039986 | 1.92 | 194 | 26.9 | 76.2 | 42.2 | 22.4 | 33.3 | 70 | 89 | 31.8 | 77.7 |
| 20-22 | 7/8 | 18-19 | 65.3 | 1039995 | 1040000 | 3.28 | 226 | 33.3 | 92 | 49.3 | 25.4 | 38.1 | 82.5 | 102 | 38.1 | 90.5 |
| 24-26 | 1 | 20-22 | 81.6 | 1040019 | 1040028 | 4.76 | 254 | 36.6 | 105 | 58.5 | 28.7 | 44.5 | 95.5 | 114 | 44.5 | 103 |
| 28-30 | 1 1/8 | 24-26 | 100 | 1040037 | 1040046 | 6.46 | 283 | 39.6 | 114 | 65 | 31.8 | 51 | 105 | 127 | 51 | 116 |
| 32-35 | 1 1/4 -1 3/8 | 28 | 136 | 1040055 | 1040064 | 8.95 | 309 | 41.4 | 127 | 71 | 38.1 | 58.5 | 119 | 138 | 56.5 | 129 |
| 38 | 1 1/2 | 30-32 | 170 | 1040073 | 1040082 | 13.24 | 355 | 49.3 | 137 | 81 | 41.4 | 70.5 | 132 | 151 | 62.5 | 155 |
| t 40-42 | t 1 5/8 | 33-35 | 188 | 1040091 | 1040108 | 16.32 | 390 | 54 | 146 | 82.5 | 44.5 | 76.2 | 140 | 165 | 70 | 171 |
| t 44-48 | t 1 3/4 - 1 7/8 | 36-40 | 268 | 1040117 | 1040126 | 25.96 | 445 | 55.5 | 171 | 95.5 | 51 | 79.5 | 162 | 191 | 76.2 | 198 |
| t 50-54 | t 2 - 2 1/8 | 42-45 | 309 | 1040135 | 1040144 | 35.83 | 505 | 62 | 194 | 111 | 57.2 | 95.5 | 187 | 216 | 82.5 | 224 |
| t 56-60 | t 2 1/4 - 2 3/8 | 46-48 | 360 | 1040153 | 1040162 | 47.62 | 546 | 70 | 216 | 127 | 66.8 | 105 | 210 | 229 | 92 | 248 |
| t 64-67 | t 2 1/2 - 2 5/8 | 50-54 | 424 | 1041759 | 1041768 | 63.5 | 597 | 79.5 | 241 | 140 | 74.5 | 114 | 235 | 248 | 102 | 270 |
| t 70-73 | t 2 3/4 - 2 7/8 | 56-62 | 549 | 1041777 | 1041786 | 99.79 | 645 | 79.5 | 273 | 159 | 79.5 | 124 | 259 | 279 | 124 | 286 |
| t 75-80 | t 3 - 3 1/8 | 64-67 | 656 | 1041795 | 1041802 | 125 | 689 | 85.6 | 292 | 171 | 86 | 133 | 292 | 305 | 133 | 298 |
| T 82-86 | T 3 1/4 - 3 3/8 | 70-73 | 750 | 1041811 | 1041820 | 142 | 743 | 102 | 311 | 184 | 92 | 146 | 311 | 330 | 146 | 311 |
| t 88-92 | t 3 1/2 - 3 5/8 | 76-80 | 820 | 1041839 | 1041848 | 181 | 787 | 102 | 330 | 197 | 98.5 | 160 | 330 | 356 | 159 | 330 |
| t 94 - 102 | t 3 3/4 - 4 | - | 1005 | 1041857 | 1041866 | 246 | 845 | 108 | 362 | 216 | 108 | 184 | 362 | 381 | 178 | 356 |
